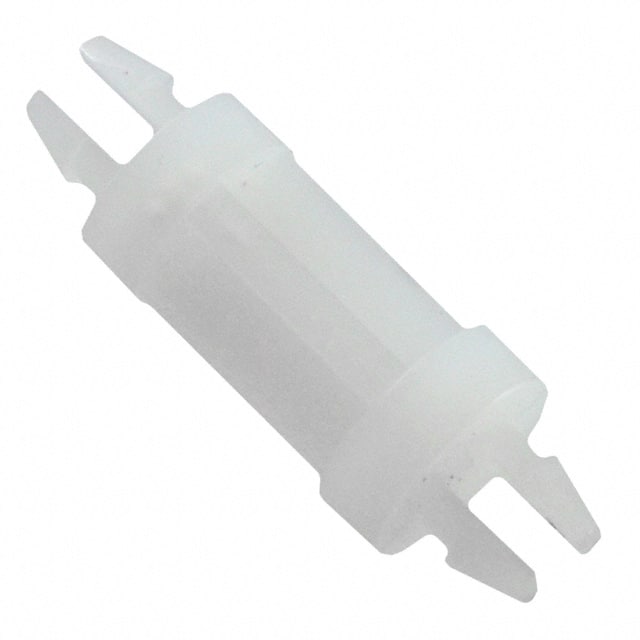

SP1-8-01 The Essentra Components SP1-8-01 is a board support with snap lock mounting and nylon construction. It offers a 0.500" height and RoHS3 compliance.
Mfr Part #:

SP1-8-01

Available from 1 distributors
Mfr Name: Essentra Components
Essentra Components
The Essentra Components SP1-8-01 is a board support with snap lock mounting and nylon construction. It offers a 0.500" height and RoHS3 compliance.
✓ Total Stock: 328 pcs
$ Price Range: $0.99

SP1-8-01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
328 pcs
On Request
328 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SP1-8-01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Between Board Height
Holding Type
Length
Material
Mounting Hole Diameter
Mounting Panel Thickness
Mounting Type
Support Hole Diameter
Support Panel Thickness
View Similar Products (0)

SP1-8-01 Description

Short technical summary and product information.

The Essentra Components SP1-8-01 is a board support designed for secure mounting of PCBs. It features a snap lock mounting type and is constructed from durable nylon material.



Key specifications include a length of 20.65mm (0.813"), a support hole diameter of 3.99mm (0.157"), and a between-board height of 0.500" (12.70mm). The support panel thickness is 0.062" (1.57mm), with a corresponding mounting hole diameter of 4.00mm (0.157").



This board support is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under standard conditions. Its REACH status is unaffected.



Ideal for applications requiring reliable PCB elevation and separation, the SP1-8-01 offers a robust solution for electronic assemblies.

SP1-8-01 Quick Information

Product Type: Board Support
Series: SP1
Canonical Name: Essentra Components SP1-8-01 Board Support

SP1-8-01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SP1-8-01 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SP1-8-01 Features

  • Snap lock mounting for easy installation.
  • Nylon material for lightweight durability.
  • 0.500 inch between board height.
  • Designed for 0.062 inch panels.
  • 0.157 inch mounting hole diameter.

SP1-8-01 Applications

  • Secures printed circuit boards.
  • Used in electronic assemblies.
  • Facilitates PCB elevation.
  • Ensures proper component spacing.

SP1-8-01 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type of the SP1-8-01?

Snap Lock.

What material is the SP1-8-01 board support made of?

Nylon.

What is the between board height of the SP1-8-01?

0.500 inches (12.70 mm).

What is the mounting hole diameter required for the SP1-8-01?

0.157 inches (4.00 mm).

What panel thickness does the SP1-8-01 support?

0.062 inches (1.57 mm).

What is the overall length of the SP1-8-01?

20.65 mm (0.813 inches).

What is the Digi-Key cross reference part number for the SP1-8-01?

RP785-ND.
