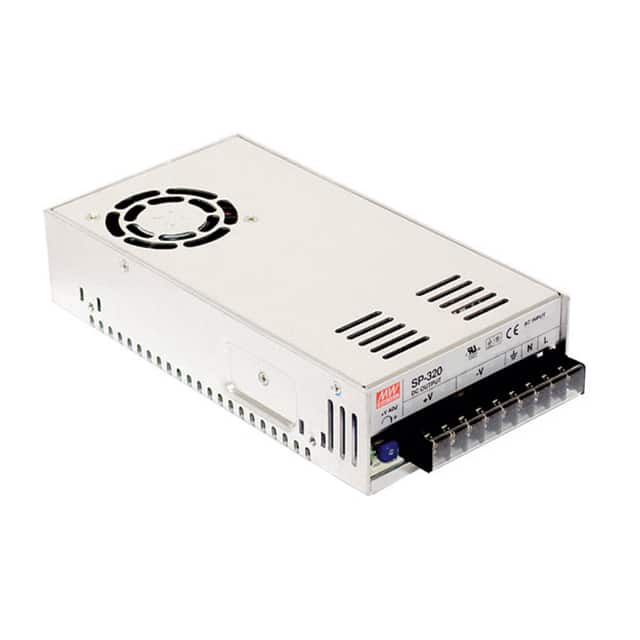

SP-320-7.5 The Mean Well USA SP-320-7.5 is a 300W AC/DC converter with a 7.5V output. It features an enclosed type and chassis mount.
Mfr Part #:

SP-320-7.5

Mfr Name: Mean Well USA
Mean Well USA
The Mean Well USA SP-320-7.5 is a 300W AC/DC converter with a 7.5V output. It features an enclosed type and chassis mount.
Stock on Request

SP-320-7.5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Type
Voltage
View Similar Products (0)

SP-320-7.5 Description

Short technical summary and product information.

The Mean Well USA SP-320-7.5 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a power output of 300W with a single output voltage of 7.5V and a current rating of 40A.



Key electrical specifications include an efficiency of 83% and a voltage rating of 3 kV. This converter supports adjustable output, Power Factor Correction (PFC), and universal input. It operates within a temperature range of -20°C to 65°C, with derating applied.



Designed for chassis mounting, the SP-320-7.5 has dimensions of 215.0mm in length, 115.0mm in width, and 50.0mm in height. It is approved by multiple agencies including CB, CCC, CE, cURus, and TUV.



Environmental compliance includes RoHS3 compliance, an MSL of 1, and REACH unaffected status.

SP-320-7.5 Quick Information

Product Type: AC/DC Converter
Series: SP
Canonical Name: Mean Well USA SP-320-7.5 AC/DC Converter
Subcategory: Enclosed

SP-320-7.5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SP-320-7.5 Features

  • 300W enclosed AC/DC power converter.
  • Single output voltage of 7.5V.
  • 40A maximum output current.
  • Chassis mount type for easy integration.
  • Features adjustable output and PFC.

SP-320-7.5 Applications

  • Powers commercial ITE equipment reliably.
  • Used in industrial automation control panels.
  • Suitable for test and measurement systems.
  • Ideal for telecommunications infrastructure.

SP-320-7.5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the SP-320-7.5?

3 kV.

What is the package type of the SP-320-7.5?

Enclosed, chassis mount.

What is the operating temperature range?

-20°C to 65°C with derating.

What is the output current?

40 A.

What is the output power?

300W.

What is the efficiency?

83%.

What approvals does the SP-320-7.5 have?

CB, CCC, CE, cURus, TUV.
