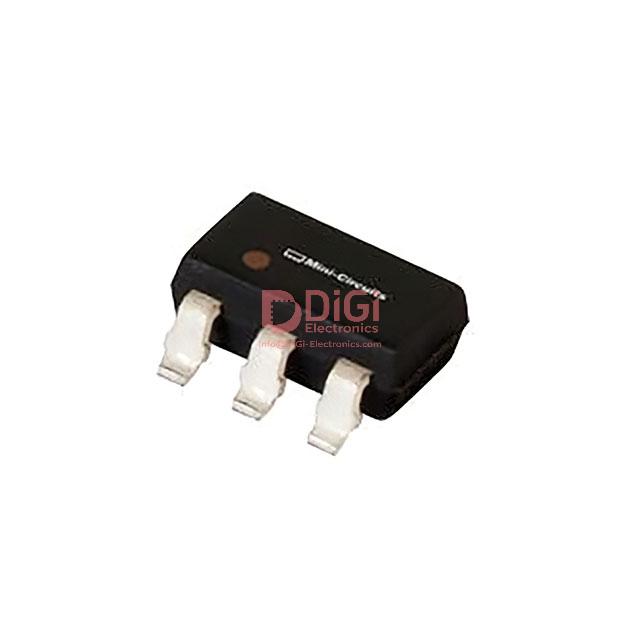

SP-2G The Mini-Circuits SP-2G is an RF Power Divider operating in the 1.42 GHz to 1.66 GHz frequency range. It features a minimum isolation of 19dB and comes in a SOT-23-6 package.
Mfr Part #:

SP-2G

Available from 1 distributors
Mfr Name: Mini-Circuits
Mini-Circuits
The Mini-Circuits SP-2G is an RF Power Divider operating in the 1.42 GHz to 1.66 GHz frequency range. It features a minimum isolation of 19dB and comes in a SOT-23-6 package.
✓ Total Stock: 7 pcs
$ Price Range: $0.99

SP-2G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SP-2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Insertion Loss
View Similar Products (0)

SP-2G Description

Short technical summary and product information.

The Mini-Circuits SP-2G is an RF Power Divider designed for applications operating within the 1.42 GHz to 1.66 GHz frequency range. This component offers a minimum isolation of 19dB, ensuring signal integrity in complex RF systems.



With a maximum VSWR of 1.25 and a maximum imbalance of 3 degrees, the SP-2G provides reliable performance. Its compact SOT-23-6 package makes it suitable for space-constrained designs. The device has an insertion loss of 0.4dB.



This RF Power Divider is packaged in Tape & Reel (TR) format, facilitating automated assembly processes. Its dimensions are 2.90mm x 1.51mm x 1.63mm, making it a small form-factor solution for various RF circuits.

SP-2G Quick Information

Product Type: RF Power Divider
Series: SP-2G
Canonical Name: Mini-Circuits SP-2G RF Power Divider
Subcategory: RF Power Dividers/Splitters

SP-2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SP-2G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SP-2G Features

  • Operates from 1.42 GHz to 1.66 GHz.
  • Provides 19dB minimum isolation.
  • Features 1.25 maximum VSWR.
  • Comes in a SOT-23-6 package.
  • Packaged in Tape & Reel.

SP-2G Applications

  • Used in RF signal distribution systems.
  • Ideal for antenna array feeding networks.
  • Suitable for test and measurement equipment.
  • Applied in wireless communication infrastructure.

SP-2G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating frequency range of the SP-2G?

The SP-2G operates from 1.42 GHz to 1.66 GHz.

What is the insertion loss of the SP-2G?

The insertion loss is 0.4 dB.

What is the isolation of the SP-2G?

The minimum isolation is 19 dB.

What is the VSWR of the SP-2G?

The maximum VSWR is 1.25.

What is the phase imbalance of the SP-2G?

The maximum phase imbalance is 3°.

What package type does the SP-2G use?

The SP-2G is housed in a SOT-23-6 package.

What are the dimensions of the SP-2G?

The dimensions are 2.90mm x 1.51mm x 1.63mm.
