| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
153 pcs
|
153 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Type | |
| Height | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance | |
| Resistance (Ohms) | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

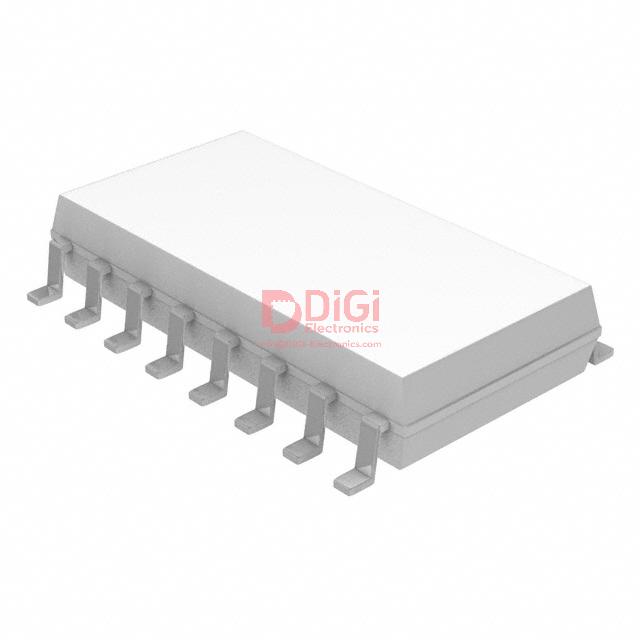

The Vishay Dale SOMC1603560RGEA is an 8-resistor network array designed for surface mount applications. Each resistor in the network has a resistance value of 560 Ohms and a tolerance of ±2%. The power rating per element is 160mW, and the operating temperature range is from -55°C to 150°C.
The network features an isolated circuit type and a temperature coefficient of ±100ppm/°C. It is housed in a 16-SOIC package with dimensions of 11.18mm in length, 5.59mm in width, and 2.29mm in height. The mounting type is surface mount.
This component is suitable for various electronic designs requiring precise and reliable resistor arrays. Its specifications make it a versatile choice for applications demanding stable performance across a wide temperature range.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 560 Ohms.
The tolerance is ±2%.
There are 8 resistors in the network.
The power rating per element is 160mW.
The package type is 16-SOIC (0.220", 5.59mm Width).
The operating temperature range is -55°C to 150°C.
