| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,898 pcs
|
6898 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Termination |

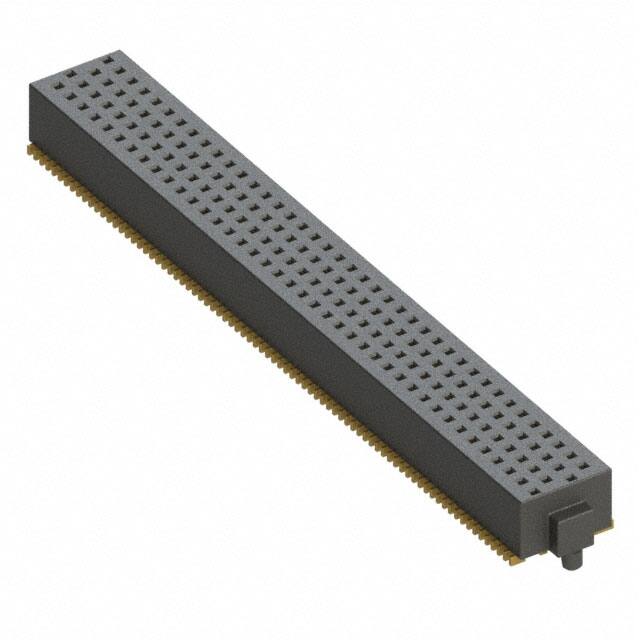

The SOLC-140-02-S-Q-A is a 160 position, quad row (4 rows) socket strip from Samtec's FOURRAY™ Tiger Buy™ series. It features a 0.050" (1.27 mm) pitch and row spacing, making it suitable for high-density board-to-board interconnects. The socket strip is surface mount terminated with gold plated contacts (30.0µin) that provide reliable electrical connections. It includes a board guide for alignment during assembly.
Electrically, each contact is rated for 2.4A, and the operating temperature range is -55°C to 125°C. The housing is made of UL94 V-0 rated material, and the insulation height is 4.06 mm. The connector is RoHS compliant, halogen free, and has a moisture sensitivity level of 1 (unlimited).
This socket strip is designed to mate with Samtec's TOLC series terminal strips. It is packaged in a tube of 10 pieces. The push-pull fastening type and optional locking clip provide secure connections in rugged environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.34 | $26.34 |
| 10+ | $26.33 | $26.33 |
| 100+ | $21.84 | $21.84 |
| 250+ | $20.75 | $20.75 |
| 500+ | $17.52 | $17.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
160 positions (all loaded).
1.27mm (0.050").
2.4A per contact.
Surface mount.
-55°C to 125°C.
UL94 V-0.
Gold, 30.0µin (0.76µm).
