| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
159 pcs
|
159 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Termination |

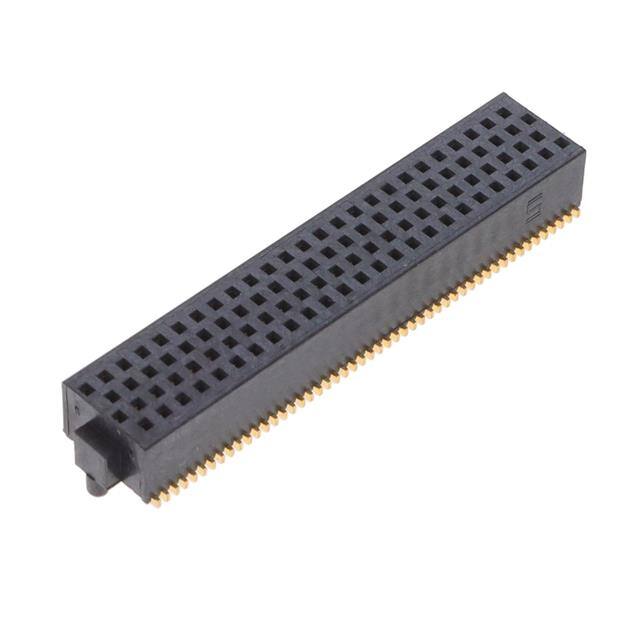

The SOLC-125-02-S-Q-A-K-TR is a 100-position, 4-row, surface mount receptacle from Samtec's FOURRAY quad row system. It features a 1.27mm (0.050") pitch with gold contact finish (30µin / 0.76µm thickness), providing reliable electrical connections in high-density board-to-board applications. The connector is rated for 2.4A per contact and operates over a temperature range of -55°C to 125°C.
This receptacle is designed with a push-pull fastening mechanism and includes board guide and pick and place features for automated assembly. The insulation is black with a height of 4.06mm, and the material has a flammability rating of UL94 V-0. The terminations are soldered to the PCB, and the connector is packaged in tape and reel with 450 pieces per package.
The SOLC series is part of Samtec's Tiger Buy contact system, offering a cost-effective solution for high-retention, quad row interconnects. It is suitable for applications requiring up to 200 pins in a compact footprint. Compliance includes RoHS3, REACH unaffected, and Halogen Free per JS-709C.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.29 | $20.29 |
| 10+ | $17.25 | $17.25 |
| 100+ | $15.05 | $15.05 |
| 250+ | $14.88 | $14.88 |
| 450+ | $12.44 | $12.44 |
| 900+ | $12.08 | $12.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 positions.
1.27mm (0.050").
2.4A per contact.
Surface mount.
-55°C to 125°C.
Gold with 30µin (0.76µm) thickness.
4 rows.
