| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Brand | |
| Length | |
| Product Type | |
| Thread Size |

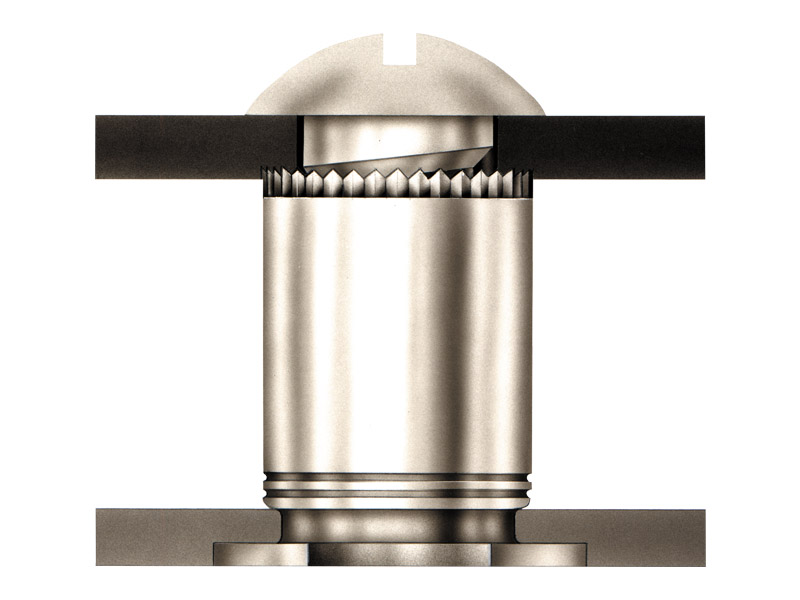

The SOAG-8632-8 from PennEngineering is a self-clinching grounding standoff designed for reliable electrical connections in sheet metal applications. Constructed from aluminum, this standoff ensures durability and corrosion resistance.
Key specifications include a #6-32 thread size (2B, ASME B1.1) and a nominal P dimension of 0.03 inches. The standoff is suitable for use in sheet materials with a hardness of HRB 50 or HB 82 or less. Its installation method is self-clinching, providing a secure and permanent mount.
With a C dimension of 0.28 inches and an H dimension of 0.312 inches, the SOAG-8632-8 offers specific mechanical attributes for integration into designs. The required hole size in the sheet is 0.281 inches, with a minimum distance from the hole centerline to the edge of 0.31 inches.
This grounding standoff is non-magnetic and belongs to the PEM SOAG product family. It is categorized as a through-hole type standoff, facilitating its mounting process.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is #6-32.
It is made of aluminum.
The thread specification is 2B, ASME B1.1.
The length is 0.25 inches.
Yes, it is non-magnetic.
It is classified as a grounding standoff.
