| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

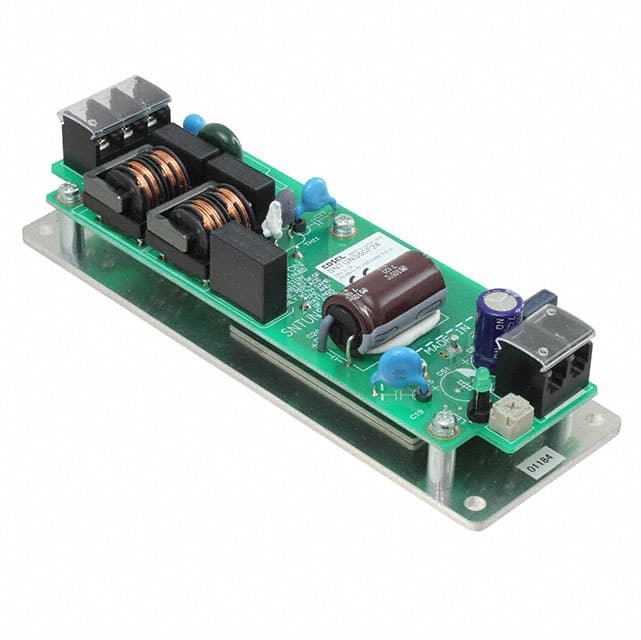

The Cosel SNTUNS50F24 is an AC/DC power module designed for various applications. It offers a single 24V output with a maximum current of 2.1A, resulting in a total output power of 50.4W. The converter accepts a wide universal input voltage range from 85 to 264 VAC and operates at frequencies between 47 and 63 Hz.
Key electrical specifications include an efficiency of 84% at ACIN 200V, a power factor of 0.90typ at ACIN 200V, and an inrush current of 30A typical at ACIN 200V. It provides line regulation of 48mV maximum and load regulation of 100mV maximum. The operating temperature range is -20°C to 95°C.
Designed for easy integration, this AC/DC converter features a chassis mount type. Its dimensions are 150.1mm in length, 50.0mm in width, and 36.1mm in height. The unit offers robust protection features including overcurrent and overvoltage protection. Isolation specifications include 3000 VAC for input-output, 2000 VAC for input-FG, and 500 VAC for output-FG.
Compliance includes RoHS3, REACH Unaffected, and CE, cURus agency approvals. The SNTUNS50F24 is suitable for ITE (Commercial) applications.
85-264 VAC.
24V at 2.1A.
4.00" x 2.00" x 1.16" (101.6mm x 50.8mm x 29.5mm).
-20°C to +95°C (on aluminum base plate).
Overcurrent protection (105% auto-recovery) and overvoltage protection (27.6-32.4V).
84% typical.
3 kV input-output.
