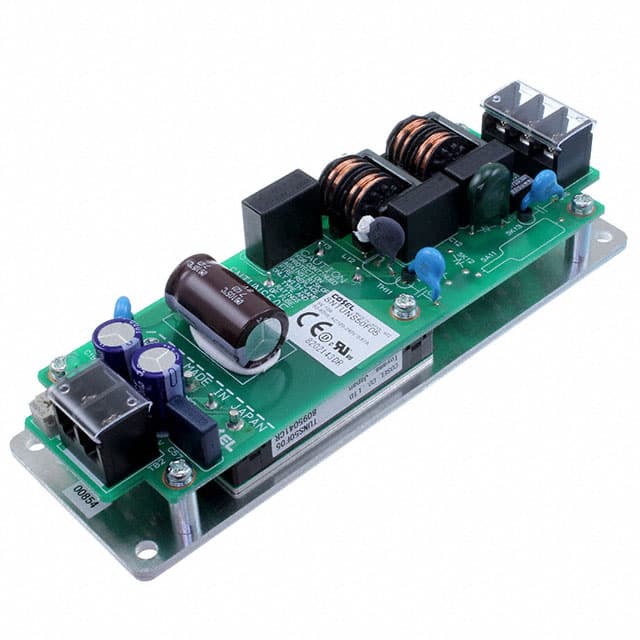

The Cosel SNTUNS50F05 is an open frame AC-DC power supply module designed for chassis mounting. It delivers a single 5VDC output with a maximum current of 10A, providing a total output wattage of 50W.
This converter features a universal input voltage range of AC85-264V, making it suitable for global applications. It incorporates power factor correction and harmonic attenuation compliant with IEC61000-3-2. Built-in protection circuits include inrush current limiting, overcurrent protection, overvoltage protection, and thermal protection.
With dimensions of 150.1mm x 50.0mm x 36.1mm, it is designed for efficient integration into systems. The operating temperature range is -20°C to +95°C. Safety agency approvals include CE and cURus, indicating compliance with ITE (Commercial) application standards.
The output is 5V DC at 10A, providing 50W total power.
The input voltage range is 85-264 VAC, single phase, at 47-63 Hz.
Typical efficiency is 76% at 100VAC and 78% at 200VAC.
-20°C to 95°C on an aluminum base plate.
150.1mm x 50.0mm x 36.1mm (5.91" x 1.97" x 1.42").
Yes, overcurrent protection activates at over 105% of rated current and recovers automatically.
Input-to-output isolation is 3000 VAC for 1 minute; input-to-FG is 2000 VAC; output-to-FG is 500 VAC.
