| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

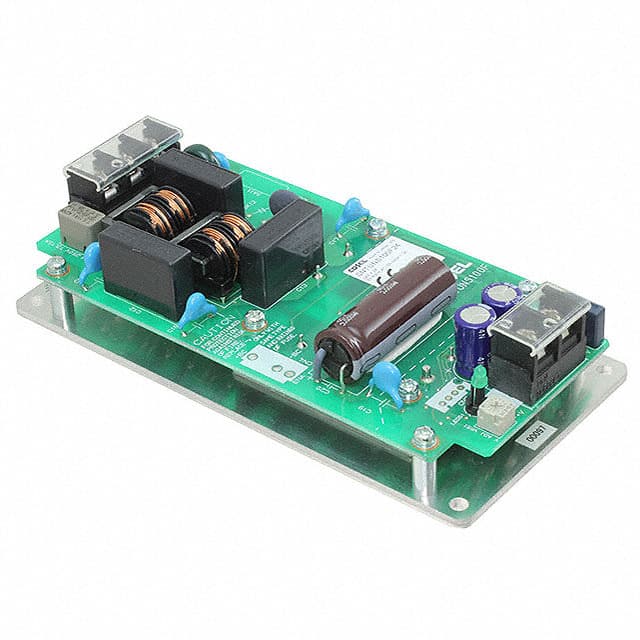

The Cosel SNTUNS100F05 is an AC-DC converter designed for various applications. This open-frame module offers a single output of 5V at 10A, with a maximum wattage of 50W.
Key electrical specifications include a universal input voltage range of AC85-264V, efficiency up to 78% at 200V input, and a power factor of 0.95 at 100V input. It incorporates built-in protection circuits for inrush current, overcurrent, overvoltage, and thermal issues. Safety agency approvals include CE and cURus, along with UL60950-1 and EN62368-1 compliance.
The converter is designed for chassis mounting and operates within an ambient temperature range of -20°C to +95°C. Its dimensions are 150.1mm in length, 50.0mm in width, and 36.1mm in height.
The output voltage is 5 VDC and the output current is 10 A.
The input voltage range is 85-264 VAC at 47-63 Hz.
The operating temperature range is -20 to +95 degrees Celsius measured on the aluminum base plate.
It uses chassis mount mounting.
It has safety agency approvals for UL60950-1, C-UL, and EN62368-1.
Yes, overcurrent protection works over 105% of rating and recovers automatically.
