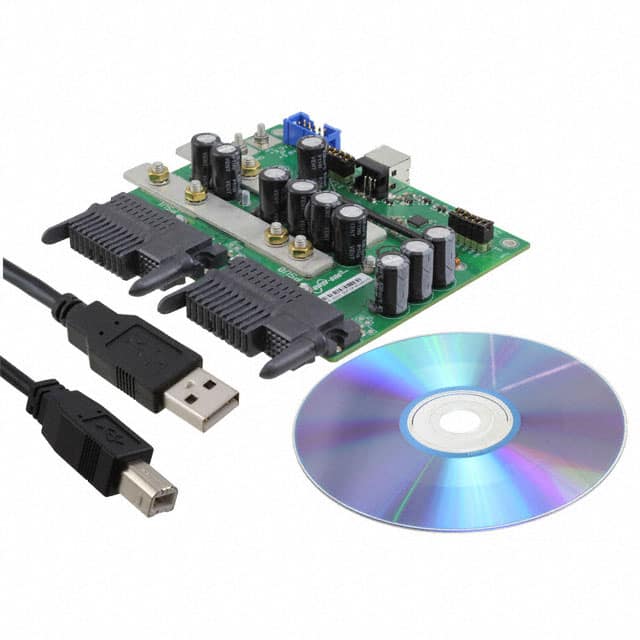

The Bel Power Solutions SNP-OP-BOARD-01 is an accessory board specifically designed to provide essential electrical connections on the output side of PFE front-end power supplies. This board is crucial for establishing redundant power supply systems, ensuring enhanced reliability for high-performance applications.
It supports communication capabilities, enabling integrated control, programming, and monitoring functions. The board is intended for use with the PFE Series of power supplies, which are designed for high-performance servers, routers, and network switches. The PFE1100-12-054xD, for example, offers a 1100-watt DC to DC conversion with a 12 VDC main output and features like hot-plug capability and parallel operation with active digital current sharing.
This accessory board contributes to the overall system's robustness by enabling parallel operation, which is vital in environments demanding continuous power availability. Its design integrates seamlessly with the PFE power supply architecture to simplify system configuration and maintenance.
The nominal output voltage is 12 VDC.
The nominal output power is 1080 W.
The nominal output current is 90 ADC.
The normal operating input voltage range is 40 to 72 VDC.
The efficiency can reach up to 95% at 50% load.
The dimensions are 321.5 x 54.5 x 40 mm.
The general operating temperature range is 0 to 45 °C.
