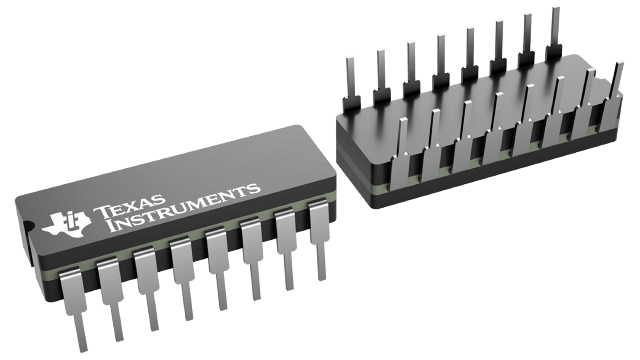

The Texas Instruments SNJ54LS595J is an 8-bit shift register designed for applications requiring serial-in, parallel-out data transfer with storage. This device utilizes the LS technology family and offers 3-state parallel outputs.
Key electrical characteristics include a maximum clock frequency of up to 25 MHz, an IOL of 24 mA, and an IOH of -2.6 mA. The maximum supply current is 65000 µA. It features a high-speed propagation delay (tpd) ranging from 10 to 50 ns.
Designed for robust performance, the SNJ54LS595J operates across a wide temperature range of -55 to 125 °C, making it suitable for military applications. The device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Separate clocks are provided for the shift register and storage register, with both being positive-edge triggered.
Available in CFP and CDIP packages, this through-hole mounted shift register is built for demanding environments. Its configuration supports serial input and parallel outputs, with serial output pins for cascading.
| Qty | Low | High |
|---|---|---|
| 1+ | $53.60 | $53.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SNJ54LS595J is available in CFP and CDIP packages.
-55 to 125°C.
Up to 20 MHz.
3-State.
Serial-in, Parallel-out.
LS (Low Power Schottky).
65 mA.
