| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Bits | |
| Number of Channels | |
| Number of Elements | |
| Number of Outputs | |
| Output Type | |
| Propagation Delay | |
| Storage Temperature | |
| Tape & Reel | |
| Technology |

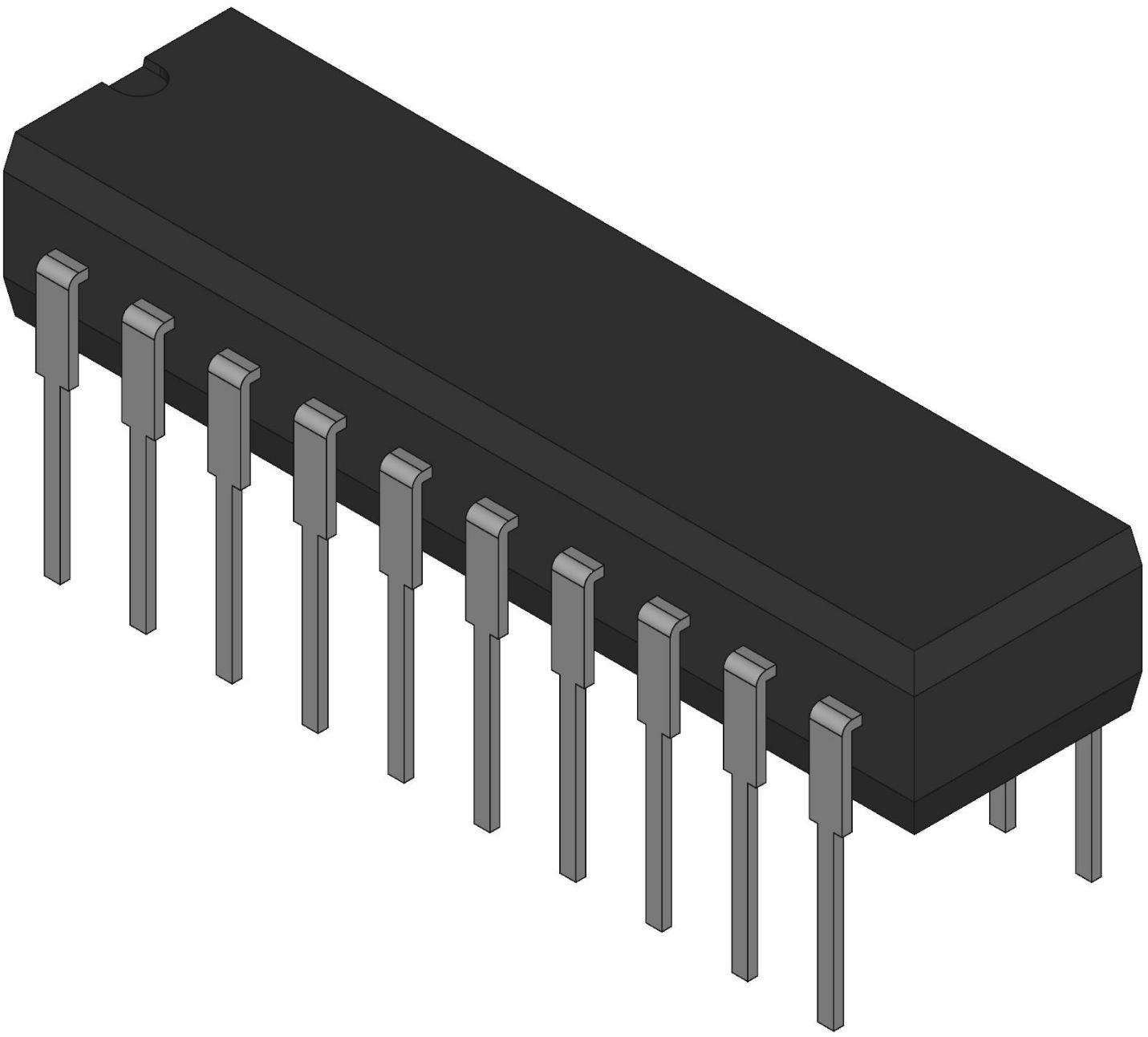

The SNJ54ALS645AJ from Texas Instruments is a bipolar logic integrated circuit designed as an octal bus transceiver. It features 3-state outputs, allowing for efficient bus management in digital systems.
This component operates with a supply voltage ranging from 4.5V to 5.5V, with a nominal operating voltage of 5V. It offers a wide operating temperature range from -55°C to 125°C, making it suitable for demanding environments. The transceiver is bidirectional and non-inverting, with 8 channels and 8 bits.
Packaged in a 20-pin CDIP (Ceramic Dual In-line Package), the SNJ54ALS645AJ is designed for through-hole mounting. Its propagation delay is rated at 30ns. This device is classified as a Logic IC and is part of the broader category of Power Management PMIC components.
While the fetched data indicates RoHS status as 'Not Compliant' and 'Contains Lead', it's important to verify specific project requirements. The part is supplied in Rail/Tube packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range for the SNJ54ALS645AJ is -55°C to 125°C.
The SNJ54ALS645AJ operates with a supply voltage between 4.5V and 5.5V, with a nominal of 5V.
The SNJ54ALS645AJ is supplied in a CDIP package.
The RoHS status of the SNJ54ALS645AJ is Not Compliant.
