| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

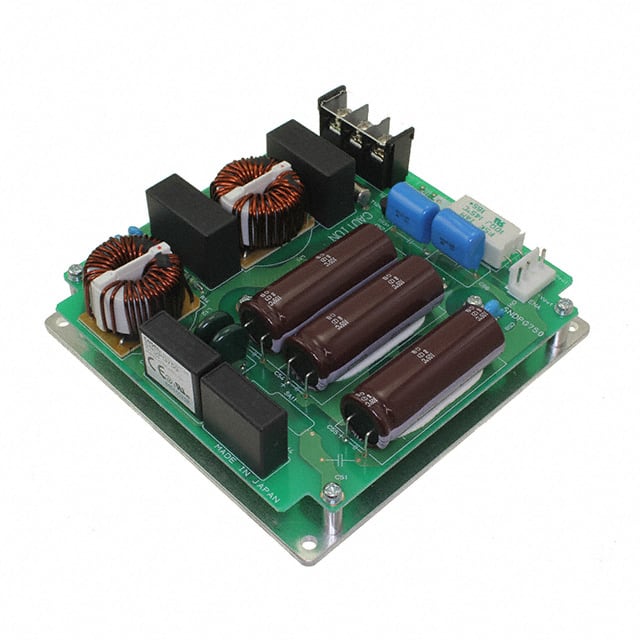

The Cosel SNDPG750 is a compact AC-DC power factor correction module designed for various applications. It offers a maximum output wattage of 750W at 200V AC input and provides a stable 360V DC output voltage with ±2% accuracy.
This module boasts high efficiency, reaching up to 96% at 200V AC input, and complies with IEC61000-3-2 for harmonic attenuation. It features a universal input voltage range of 85-264VAC and includes built-in inrush current protection and an enable signal (ENA).
The SNDPG750 is designed for conduction cooling, utilizing its aluminum base plate for heat radiation to an attached heat sink. It has dimensions of 127.0mm x 125.0mm x 44.5mm and is suitable for chassis mounting. Safety agency approvals include UL60950-1, C-UL, and EN62368-1, complying with DEN-AN regulations.
The DC output voltage is 360V.
The maximum output wattage is 750W at AC170-264V input.
The universal input voltage range is AC85 - 264V.
The operating temperature range is -20°C to +95°C on the aluminum base plate.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
