| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

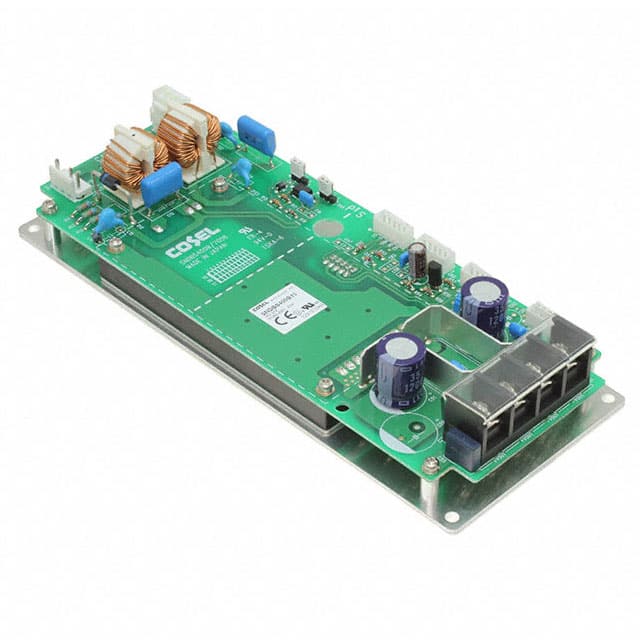

The Cosel SNDBS700B24 is a high-power DC-DC converter from the SNDBS series, delivering a 24V output with a maximum wattage of 696W. It operates within a wide input voltage range of 200-400V DC and offers a typical efficiency of 90%. This converter is designed for chassis mounting and features an open frame construction, making it suitable for integration into various systems.
Key electrical specifications include a 29A maximum output current and an isolation voltage of AC3,000V between input and output. It incorporates built-in overcurrent protection that automatically recovers when the load exceeds 105% of rating. The operating temperature range is -20°C to 95°C with derating, ensuring reliable performance in demanding environments.
Designed for ITE (Commercial) applications, the SNDBS700B24 also supports remote sensing and remote ON/OFF functionality, providing enhanced control and monitoring capabilities. Its robust design and comprehensive protection features make it a reliable choice for power conversion needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage of the Cosel SNDBS700B24 is 24V.
The maximum output power of the SNDBS700B24 is 696W.
The input voltage range for the SNDBS700B24 is 200-400V DC.
The operating temperature range for the Cosel SNDBS700B24 is -20°C to 95°C with derating.
Yes, the SNDBS700B24 has overcurrent protection that works over 105% of rating and recovers automatically.
The SNDBS700B24 uses chassis mount.
