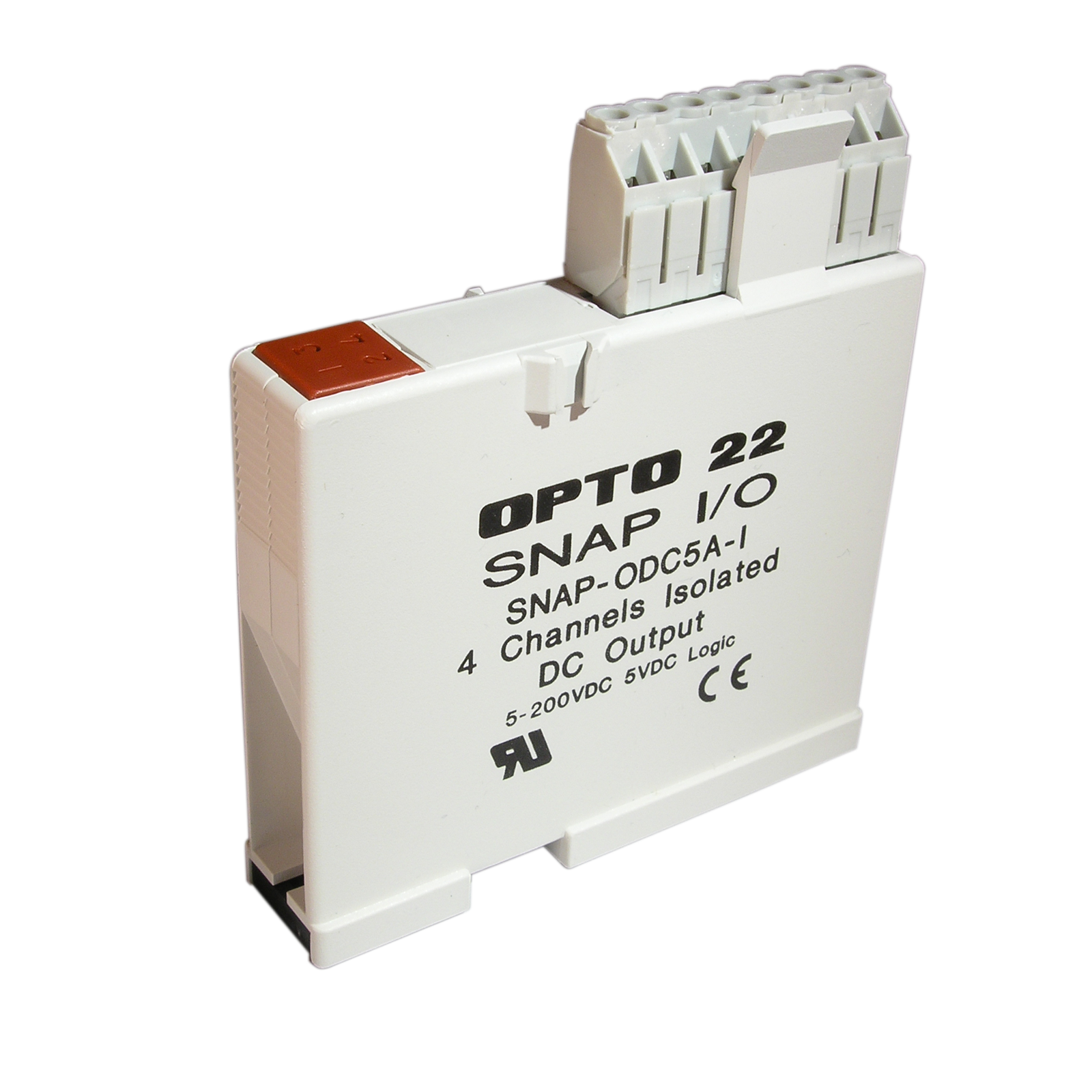

The Opto 22 SNAP-ODC5A-i is a digital output module from the SNAP PAC System, providing four isolated channels for switching individual DC loads. Each channel supports a voltage range of 5-200 VDC and can handle up to 3 amps per module. The module features channel-specific LEDs for easy troubleshooting and 4000 volts of transient protection for sensitive control electronics.
Designed for industrial applications, this module operates within a temperature range of -20 to 70 °C. It integrates seamlessly with SNAP PAC racks and brains, and can be used alongside analog, digital, and serial I/O modules. The SNAP-ODC5A-i is also suitable for PC-based control systems or as remote I/O for Allen-Bradley Logix PLC systems.
Field wiring is facilitated by convenient pluggable wiring terminals. The module requires a 5 VDC control logic supply. For enhanced wiring efficiency, compatible SNAP TEX cables and breakout boards are available.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage range for each channel is 5-200 VDC.
The module has a current rating of 3 amps per module.
The operating temperature range is -20 to 70 °C.
The module features four isolated output channels.
The module is powered by a single 5 VDC supply for control logic.
