The SN75LVCP600SDSKR from Texas Instruments is a single-channel SATA/SAS signal conditioner capable of supporting data rates up to 6 Gbps. This device complies with SATA physical specification rev 3.0 and SAS electrical specification 2.0.
It operates from a single 3.3V supply and features 100Ω line termination with self-biasing, making it suitable for AC coupling. The redriver includes two-level equalization for both RX (7, 15 dB) and TX (0, -1.3 dB) signals, allowing it to compensate for interconnect losses over FR4 PCB traces up to 40 inches at 6 Gbps. Programmable squelch threshold and pin-selectable SATA/SAS signaling are also included.

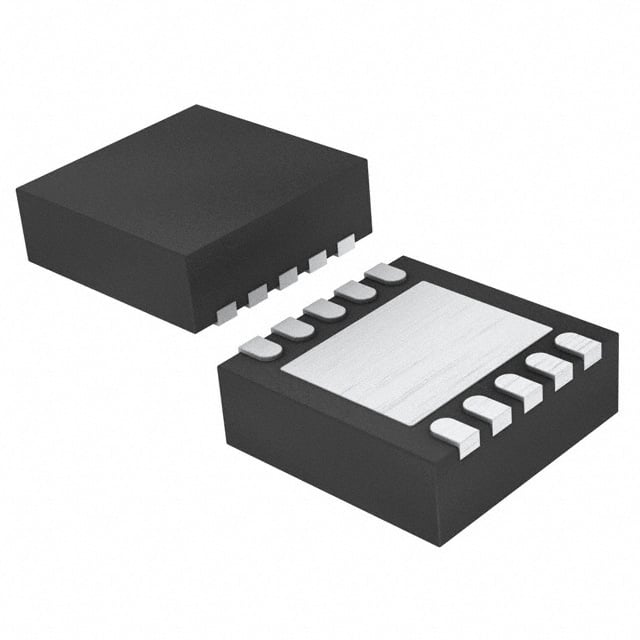

The SN75LVCP600SDSKR is housed in an ultra-small 10-pad 2.5mm x 2.5mm QFN (DSK) package, suitable for surface mounting. It operates within a temperature range of -40°C to 85°C. The device also offers low power consumption, with typical active mode power at 106 mW at 6 Gbps and less than 11 mW in partial and slumber states. High ESD transient protection is provided, with HBM ratings up to 9,000V.
Applications include notebooks, desktop computers, docking stations, active cables, servers, and workstations requiring reliable high-speed SATA/SAS signal conditioning.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.12 | $6.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SN75LVCP600SDSKR supports a maximum data rate of 6 Gbps.
The device operates from a 3.3V supply.
The SN75LVCP600SDSKR is available in a 10-pin DSK (QFN) package measuring 2.5mm x 2.5mm, also referred to as 10-SON or 10-WFDFN Exposed Pad.
The SN75LVCP600SDSKR operates within a temperature range of -40°C to 85°C.
The RX equalization levels are 7 dB and 15 dB, while the TX equalization levels are 0 dB and -1.3 dB.
The typical power consumption in active mode at 6 Gbps is 106 mW.
