| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,218 pcs
|
8218 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Interface | |
| Function | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature Range | |
| Standards | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The SN75DP159RSBT from Texas Instruments is an active retimer IC designed for video interface applications. It supports data rates up to 6 Gbps and is compatible with HDMI 2.0b, DisplayPort Dual-Mode Standard Version 1.1, and DVI 1.0.
This retimer features 4 channels and operates within a temperature range of 0°C to 85°C. It utilizes an I²C control interface for configuration. The device offers low power consumption, with active power draw of 435 mW at 6 Gbps and a shutdown power consumption of 10 mW.

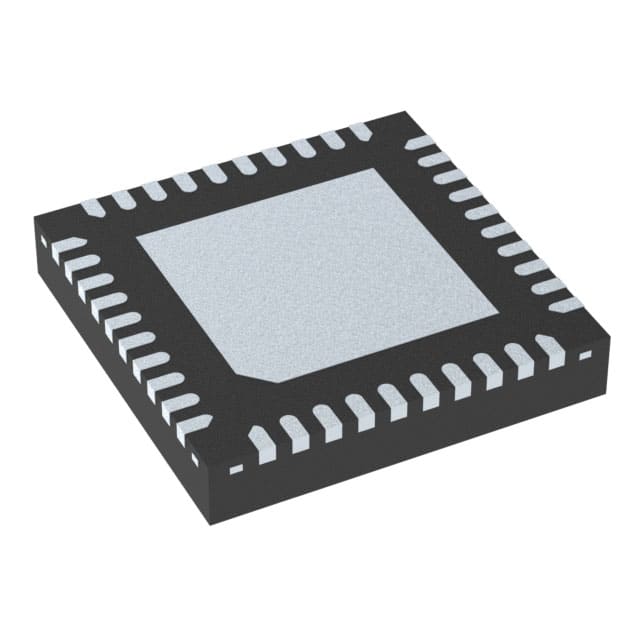

The SN75DP159RSBT is available in a 40-WQFN (5x5 mm) package and is designed for surface mount applications. Its function as a level shifter and retimer makes it suitable for signal integrity enhancement in video display systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.77 | $3.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum data rate supported is 6 Gbps.
The device has 4 channels.
The operating temperature range is from 0°C to 85°C.
It operates within a voltage range of 3V to 3.6V.
It supports HDMI 2.0b, DisplayPort Dual-Mode Standard Version 1.1, and DVI 1.0.
The active power consumption is 435 mW at 6 Gbps.
The shutdown power consumption is 10 mW.
