| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200,000 pcs
|
200000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,569 pcs
|
3569 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Protocol | |
| Receiver Hysteresis | |
| Supplier Device Package | |
| Supply Current | |
| Type | |
| Voltage |
The SN75157P from Texas Instruments is a dual differential line receiver IC. It is designed to meet standards EIA/TIA-422-B and EIA/TIA-423-B, as well as ITU recommendations V.10 and V.11.
This receiver features two channels and supports a maximum signaling rate of 4 Mbps. It operates from a single 5V power supply with a voltage range of 4.75V to 5.25V. The device offers a wide common-mode voltage range and high input impedance. Its outputs are TTL-compatible.

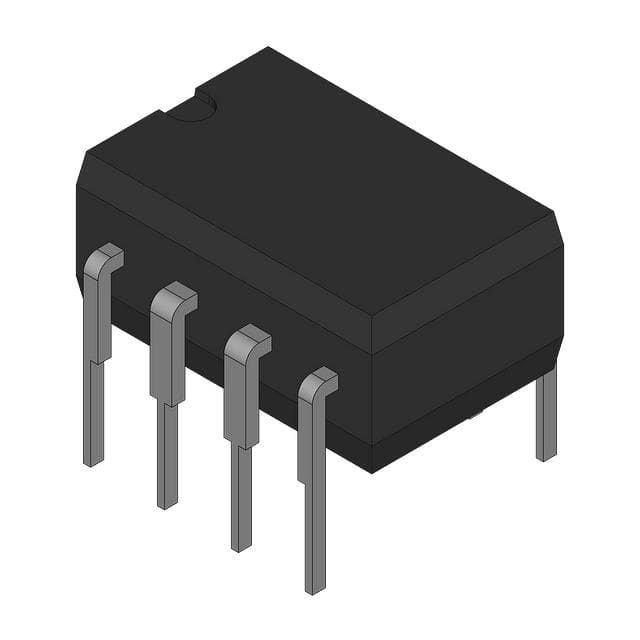

The SN75157P is characterized for operation within an ambient temperature range of 0°C to 70°C. It comes in an 8-pin dual-in-line package (PDIP) and is suitable for through-hole mounting.
Key electrical characteristics include a receiver hysteresis of 70 mV and fault protection ranging from -10V to 15V. The device has a supply current of up to 50000 µA.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.05 | $2.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is 0°C to 70°C.
The SN75157P is supplied in an 8-DIP (0.300", 7.62mm) package.
The maximum signaling rate is 4 Mbps.
The device operates from a single 5V power supply, with a voltage range of 4.75V to 5.25V.
The SN75157P supports RS422 and RS423 protocols.
