| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,921 pcs
|
1921 pcs | On Request | 1 | On Request | On Request | 0536+ | On Request | On Request | |
|
1,002 pcs
|
1002 pcs | On Request | 1 | On Request | On Request | 726 | On Request | On Request | |
|
429 pcs
|
429 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Lead Style | |
| Logic Type | |
| Mounting Type | |
| Number of Bits per Element | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Voltage |
The SN74LVCH32245AGKER is a 32-bit (4-element × 8-bit) non-inverting transceiver integrated circuit from Texas Instruments. It provides bidirectional voltage-level translation and bus driving capability for high-performance digital systems.
The device operates from a supply voltage range of 1.65V to 3.6V, making it suitable for low-voltage applications. Each output can sink or source 24 mA, enabling direct drive of heavily loaded buses. The outputs are 3-state, allowing multiple transceivers to share a common bus.

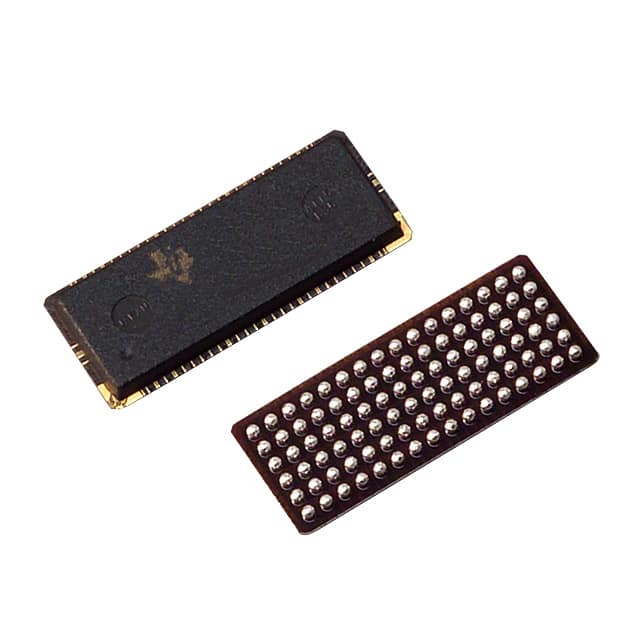

The SN74LVCH32245AGKER is housed in a 96-pin LFBGA package (13.5×5.5 mm) with surface mount mounting. It supports an operating temperature range of -40°C to 85°C. The RoHS3 compliance ensures environmental compatibility.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.65V to 3.6V.
96-LFBGA (13.5x5.5 mm).
-40°C to 85°C.
Non-inverting transceiver.
32 bits total (4 elements × 8 bits each).
Each output can source or sink 24 mA.
3-state outputs.
