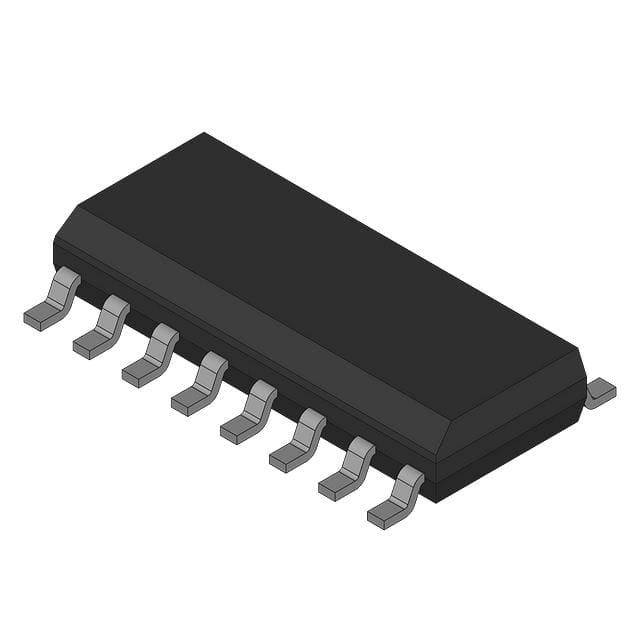

The SN74LVC74ANS is a dual positive-edge-triggered D-type flip-flop integrated circuit from Texas Instruments. It is designed to operate within a supply voltage range of 1.65V to 3.6V, with inputs capable of accepting voltages up to 5.5V. This device features a maximum propagation delay of 5.2ns at 3.3V with a 50pF load capacitance and a clock frequency of up to 100 MHz.
Key electrical characteristics include a typical quiescent current of 10 µA and complementary output types. The flip-flops integrate functions for set (preset) and reset. ESD protection exceeds 2000V for the human-body model and 1000V for the charged-device model, with latch-up performance exceeding 250mA.
Packaged in a 14-SOIC (0.209", 5.30mm Width) surface-mount package, the SN74LVC74ANS is suitable for various digital logic applications. The device offers robust performance with typical output ground bounce below 0.8V and output VOH undershoot above 2V at 3.3V supply and 25°C.
Applications for this component include servers, telecom infrastructure, test and measurement equipment, industrial transport, and factory automation. Its dual flip-flop configuration with clear and preset capabilities makes it versatile for state-holding and sequential logic circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.86 | $0.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SN74LVC74ANS operates from 1.65V to 3.6V.
The SN74LVC74ANS is available in a 14-SOIC package.
The operating temperature range is -40°C to 125°C (TA).
The maximum clock frequency is 100 MHz.
The maximum propagation delay is 5.2ns at 3.3V with a 50pF load.
The SN74LVC74ANS is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
