| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
98,798 pcs
|
98798 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20,670 pcs
|
20670 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
4,940 pcs
|
4940 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
2,597 pcs
|
2597 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Data Rate | |
| Features | |
| Latch-up Performance | |
| Mounting Type | |
| Operating Temperature Range | |
| Propagation Delay | |
| Supplier Device Package | |
| Topology |

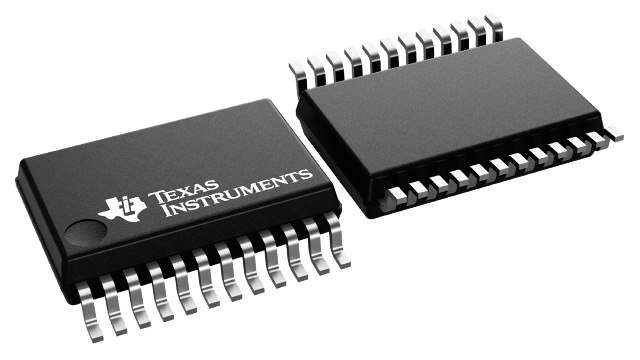

The SN74LVC4245ADWR is an 8-bit (octal) noninverting bus transceiver manufactured by Texas Instruments. It features two separate supply rails, allowing for translation between 3.3V and 5V environments. This device is designed for asynchronous communication and supports applications such as GPIO, JTAG, SPI, and UART.
Key electrical specifications include a maximum data rate of 200 Mbps, a propagation delay of 6.7 ns, and a high drive strength of 24mA at 3V. The operating temperature range is -40°C to 85°C. It also includes features like output enable control, robust power supply sequencing, VCC isolation, and VCC disconnect.
This transceiver is available in a 24-SOIC package and is designed for surface mount applications. It offers robust ESD protection, exceeding 2000V for the Human-Body Model and 1000V for the Charged-Device Model. Latch-up performance exceeds 250mA per JESD 17.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SN74LVC4245ADWR supports a maximum data rate of 200 Mbps.
The operating temperature range is -40°C to 85°C.
It is available in a 24-SOIC surface-mount package with a 0.295-inch (7.50mm) width.
The input voltage range is 4.5V to 5.5V.
The output voltage range is 2.7V to 5.5V.
The propagation delay is 6.7 ns.
It belongs to the LVC technology family.
