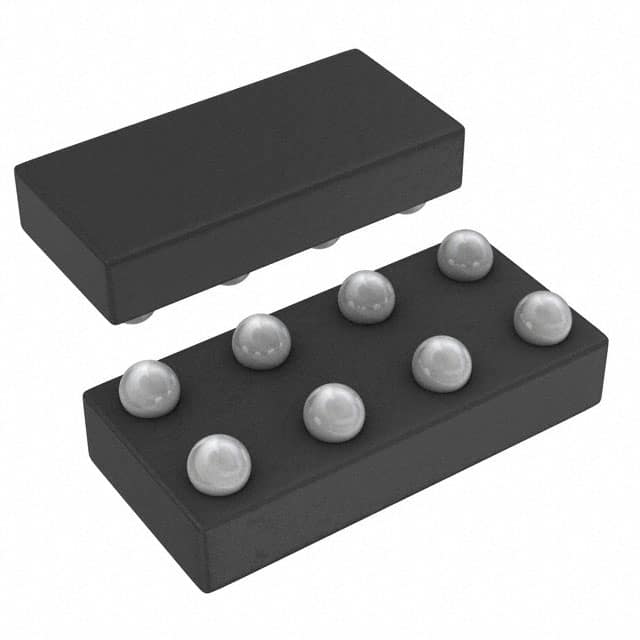

The SN74LVC2G66YZPR from Texas Instruments is a dual bilateral analog switch designed for versatile signal handling in applications requiring 1.65V to 5.5V VCC operation. This device can manage both analog and digital signals, allowing transmission of signals with amplitudes up to 5.5V in either direction.
Key electrical characteristics include a low typical on-state resistance of 6 Ohms at 4.5V and a maximum on-resistance of 10 Ohms. It boasts a high switching speed with a typical propagation delay of 0.5 ns at 3V and a maximum of 0.8 ns at 3.3V. The switch operates at frequencies up to 300MHz, with a crosstalk of -58dB at 1MHz and a channel capacitance of 6pF.
Packaged in an 8-DSBGA (1.9x0.9) format, the SN74LVC2G66YZPR is suitable for surface mount applications. It operates within a temperature range of -40°C to 85°C. The device features two independent switch sections, each controlled by an enable input.
Applications for this analog switch include signal gating, chopping, modulation or demodulation, and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SN74LVC2G66YZPR operates from 1.65V to 5.5V.
The typical on-resistance is 6 Ohms at 4.5V.
The operating temperature range is -40°C to 85°C.
It is supplied in an 8-DSBGA package.
The bandwidth is 300MHz.
