| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
361,600 pcs
|
361600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate (Max) | |
| Features | |
| Input Type | |
| Logic Type | |
| Mounting Type | |
| Number of Channels | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Output Type | |
| Schmitt Trigger Input | |
| Supplier Device Package | |
| Voltage |
The Texas Instruments SN74LVC1G98YZPR is a versatile configurable multiple-function gate designed for a wide operating voltage range of 1.65V to 5.5V. This logic IC offers flexibility with its configurable logic functions, allowing it to perform as a MUX, AND, OR, NAND, NOR, inverter, or non-inverter gate based on input patterns.
Key electrical specifications include a data rate of up to 100 Mbps and an output drive of ±24mA at 3.3V. The device features Schmitt-trigger inputs for improved noise immunity and supports over-voltage tolerant inputs. It operates within a temperature range of -40°C to 125°C.

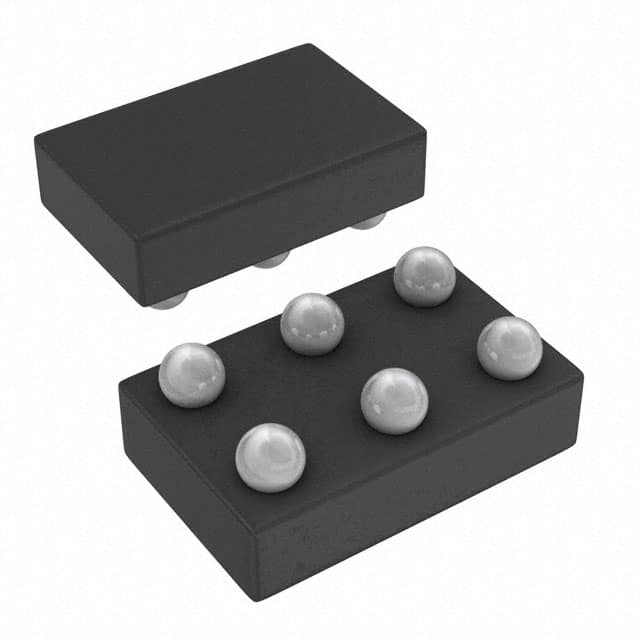

Packaged in a compact 6-DSBGA (6-XFBGA) surface-mount package, the SN74LVC1G98YZPR is suitable for space-constrained applications. Its features, such as partial power-down (Ioff) and very high speed, make it a robust choice for various digital logic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device operates from 1.65V to 5.5V.
It is available in a 6-XFBGA, DSBGA package with a 6-DSBGA supplier device package.
The operating temperature range is -40°C to 125°C.
The maximum data rate is 100 Mbps.
The push-pull output can sink and source up to 32 mA.
It is part of the LVC (Low-Voltage CMOS) technology family.
