| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200,000 pcs
|
200000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Frequency | |
| Current | |
| Function | |
| Input Capacitance | |
| Input Type | |
| Lead Style | |
| Max Propagation Delay @ V, Max CL | |
| Mounting Type | |
| Number of Bits per Element | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Trigger Type | |
| Type | |
| Voltage |
The SN74LVC1G74RSER from Texas Instruments is a single, positive-edge-triggered D-Type flip-flop. This device is designed for high-speed applications, featuring a maximum clock frequency of 200 MHz and a low supply current of 10 µA.
It supports a broad operating voltage range from 1.65V to 5.5V, with inputs accepting voltages up to 5.5V and down translation capabilities. The flip-flop offers a maximum propagation delay of 4.4ns at 5V with a 50pF load, and 5.9ns at 3.3V. The output type is Push-Pull with an IOL of 32mA and IOH of -32mA at 3.3V.

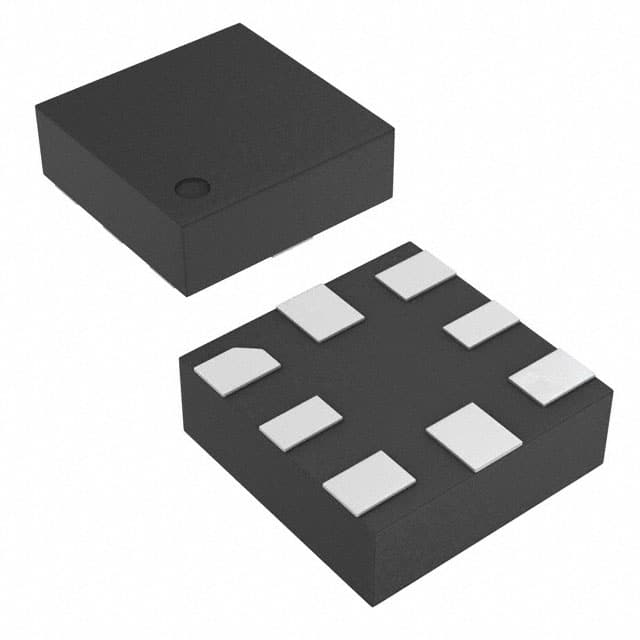

Packaged in an 8-UQFN (1.5x1.5) surface-mount package, the SN74LVC1G74RSER is suitable for space-constrained designs. It operates within a temperature range of -40°C to 125°C. The device includes features like Set (Preset) and Reset functionality, making it versatile for various digital logic applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device operates from 1.65V to 5.5V.
The maximum clock frequency is 200 MHz.
The operating temperature range is -40°C to 125°C.
Maximum propagation delay is 4.4 ns at 5V/50pF and 5.9 ns at 3.3V.
The device is available in an 8-UQFN (1.5x1.5) surface-mount package.
The device can sink/source 24 mA at 3.3V.
The input capacitance is 5 pF.
