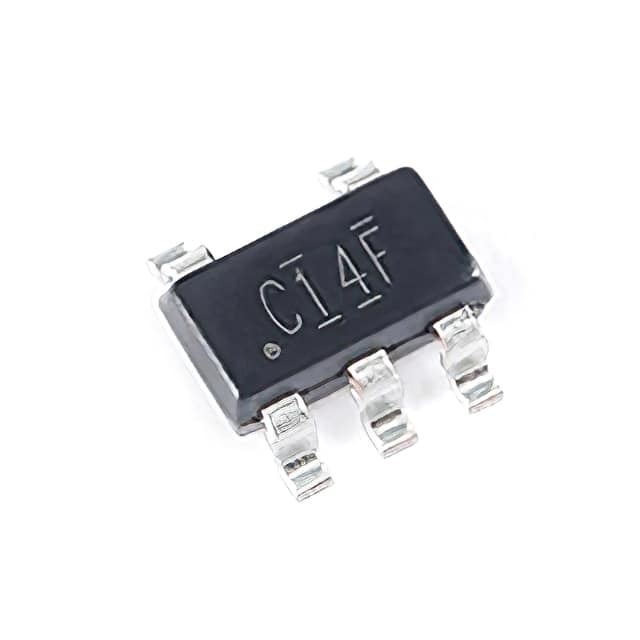

SN74LVC1G14DBVR The SN74LVC1G14DBVR is a single Schmitt-Trigger inverter from UMW, designed for operation between 1.65V and 5.5V. It is available in a SOT-23-5 package.
Mfr Part #:

SN74LVC1G14DBVR

Available from 1 distributors
Mfr Name: UMW (Youtai Semiconductor)
UMW (Youtai Semiconductor)
The SN74LVC1G14DBVR is a single Schmitt-Trigger inverter from UMW, designed for operation between 1.65V and 5.5V. It is available in a SOT-23-5 package.
✓ Total Stock: 1,435 pcs
$ Price Range: $0.04

SN74LVC1G14DBVR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
1,435 pcs
On Request
1435 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SN74LVC1G14DBVR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Features
Input Logic Level
Input Type
Logic Type
Max Propagation Delay @ V, Max CL
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Operating Voltage
Output Current
Output Type
Supplier Device Package
Supply Current
Voltage
View Similar Products (0)

SN74LVC1G14DBVR Description

Short technical summary and product information.

The SN74LVC1G14DBVR is a single Schmitt-Trigger inverter IC manufactured by UMW (Youtai Semiconductor). It operates across a wide voltage range of 1.65V to 5.5V, making it suitable for various applications. This inverter features Schmitt-Trigger inputs, which provide hysteresis, making it tolerant to noisy or slow input signals.



Key electrical characteristics include a low input current of 0.1 uA typical and low quiescent power consumption of 0.1 uA typical. It offers a high output drive capability of greater than 32 mA at VCC = 4.5V. The maximum propagation delay is 20ns at 5V with a 15pF load.



This component is supplied in a SOT-23-5 surface-mount package. Its design is suitable for applications requiring logic inversion with enhanced noise immunity, such as in portable audio interfaces, digital TVs, solid-state hard disks, and intelligent wearable devices.

SN74LVC1G14DBVR Quick Information

Product Type: Inverter
Canonical Name: SN74LVC1G14 Single Schmitt-Trigger Inverter
Subcategory: Inverter

SN74LVC1G14DBVR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SN74LVC1G14DBVR Estimated Pricing

Qty Low High
1+ $0.04 $0.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

SN74LVC1G14DBVR Features

  • Single Schmitt-Trigger inverter IC.
  • Wide operating voltage from 1.65V to 5.5V.
  • Low input current and quiescent power.
  • High output drive capability.
  • SOT-23-5 surface-mount package.

SN74LVC1G14DBVR Applications

  • Portable audio interfaces.
  • Digital TV systems.
  • Solid-state hard disk drives.
  • Intelligent wearable devices.

SN74LVC1G14DBVR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the SN74LVC1G14DBVR?

1.65 V to 5.5 V.

What is the operating temperature range?

-40°C to 105°C.

What package is the SN74LVC1G14DBVR available in?

SOT-23-5 (also known as SC-74A, SOT-753).

What is the output drive capability?

32 mA at VCC = 4.5 V.

Does the SN74LVC1G14DBVR have Schmitt-Trigger inputs?

Yes, the input type is Schmitt-Trigger.

What is the maximum propagation delay?

20 ns at 5 V and 15 pF load.
