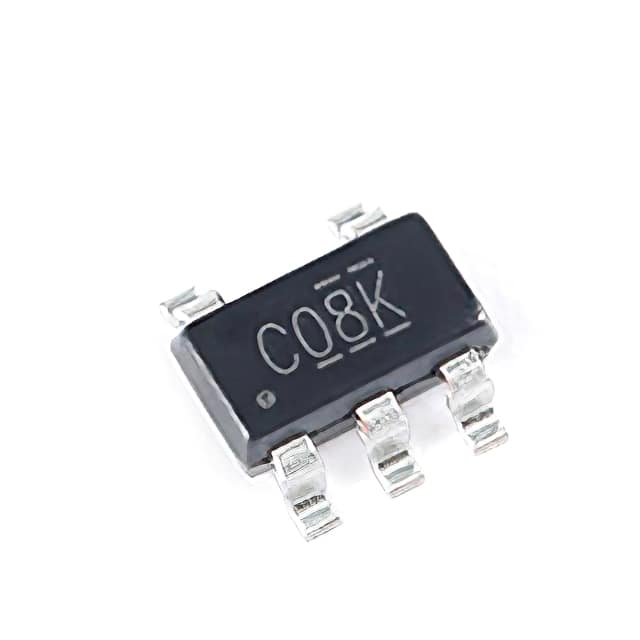

SN74LVC1G08DBVR The SN74LVC1G08DBVR is a 2-input AND gate integrated circuit from UMW Youtai Semiconductor. It operates over a wide voltage range and is suitable for various applications.
Mfr Part #:

SN74LVC1G08DBVR

Available from 1 distributors
Mfr Name: UMW (Youtai Semiconductor)
UMW (Youtai Semiconductor)
The SN74LVC1G08DBVR is a 2-input AND gate integrated circuit from UMW Youtai Semiconductor. It operates over a wide voltage range and is suitable for various applications.
✓ Total Stock: 2,950 pcs
$ Price Range: $0.22

SN74LVC1G08DBVR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
2,950 pcs
On Request
2950 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SN74LVC1G08DBVR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Input Logic Level
Input Voltage
Logic Type
Max Propagation Delay @ V, Max CL
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

SN74LVC1G08DBVR Description

Short technical summary and product information.

The SN74LVC1G08DBVR is a single 2-input AND gate from UMW Youtai Semiconductor, designed using an advanced CMOS process for low power consumption and high output drive capability. This integrated circuit operates across a wide supply voltage range from 1.65V to 5.5V.



Key electrical characteristics include a low input current of 0.1uA typical and a low static power consumption of 0.1uA typical. The device offers a high output drive of more than 32mA at VCC=4.5V. Propagation delay is a maximum of 10ns at 5V with a 15pF load.



The SN74LVC1G08DBVR is available in a compact SOT-23-5 surface mount package, making it suitable for space-constrained designs. Its versatility allows for use in applications such as portable audio interfaces, digital televisions, and smart wearable devices.



This AND gate is designed for reliable operation within an ambient temperature range of -40°C to 105°C.

SN74LVC1G08DBVR Quick Information

Product Type: AND Gate
Series: 74LVC
Canonical Name: SN74LVC1G08DBVR 2-Input AND Gate
Subcategory: AND Gate

SN74LVC1G08DBVR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SN74LVC1G08DBVR Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

SN74LVC1G08DBVR Features

  • Single 2-input AND gate integrated circuit.
  • Wide operating voltage range from 1.65V to 5.5V.
  • Low input current and static power consumption.
  • High output drive capability of 32mA.
  • Compact SOT-23-5 surface mount package.

SN74LVC1G08DBVR Applications

  • Suitable for general purpose logic applications.
  • Used in voltage level shifting circuits.
  • Integrated into compact electronic designs.
  • Applied in industrial control systems.
  • Utilized in battery-powered devices.

SN74LVC1G08DBVR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the SN74LVC1G08DBVR?

The SN74LVC1G08DBVR operates within a voltage range of 1.65V to 5.5V.

What is the package type for the SN74LVC1G08DBVR?

The SN74LVC1G08DBVR is available in SOT-23-5 and SC-74A, SOT-753 packages.

What is the operating temperature range of the SN74LVC1G08DBVR?

The operating temperature range for the SN74LVC1G08DBVR is -40°C to 105°C.

How many inputs does the SN74LVC1G08DBVR have?

The SN74LVC1G08DBVR has 2 inputs.

What is the logic type of the SN74LVC1G08DBVR?

The logic type of the SN74LVC1G08DBVR is an AND Gate.

What is the maximum propagation delay for the SN74LVC1G08DBVR?

The maximum propagation delay is 10ns when operating at 5V with a 15pF load.

What is the typical low static power consumption of the SN74LVC1G08DBVR?

The typical low static power consumption is 0.1uA.
