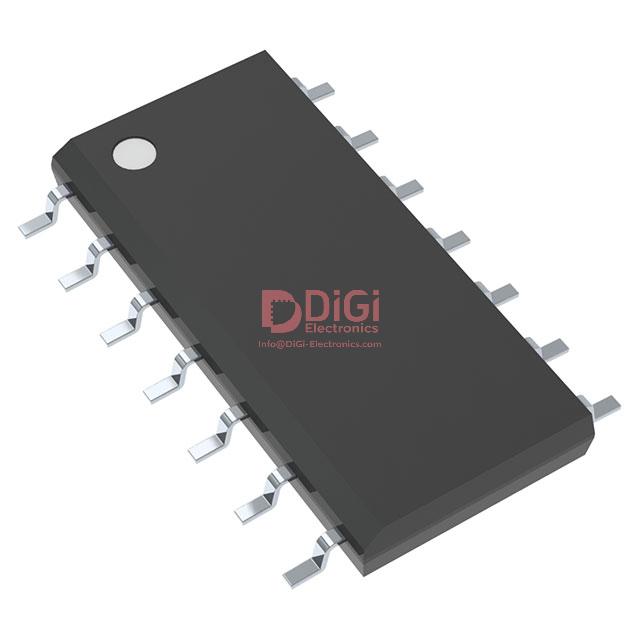

The SN74LVC02 is a NOR Gate integrated circuit manufactured by Texas Instruments. This component belongs to the logic gate family and is designed for digital applications requiring NOR logic functionality.
Key electrical specifications include a supply voltage range of 4.5V to 5.5V. The gate features 4 independent circuits, each with 2 inputs. The output current capabilities are rated at 400µA for high output and 8mA for low output. Input logic levels are defined with a low threshold of 0.8V and a high threshold of 2V. The maximum propagation delay is specified as 12ns at 5V and 50pF, indicating its performance characteristics for switching speeds.
This IC is housed in a surface mount package, specifically the 14-SOIC configuration, which is suitable for automated assembly processes. The operating temperature range is from 0°C to 70°C, making it appropriate for standard industrial environments. The SN74LVC02 is designed for general-purpose logic applications where NOR operations are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.5V to 5.5V.
The SN74LVC02 is available in a 14-SOIC (0.154", 3.90mm Width) surface-mount package.
The operating temperature range is 0°C to 70°C.
It contains four independent 2-input NOR gates.
The maximum propagation delay is 12ns at 5V supply with a 50pF load.
Low level is 0.8V, high level is 2V.
High level output current is 400µA, low level is 8mA.
