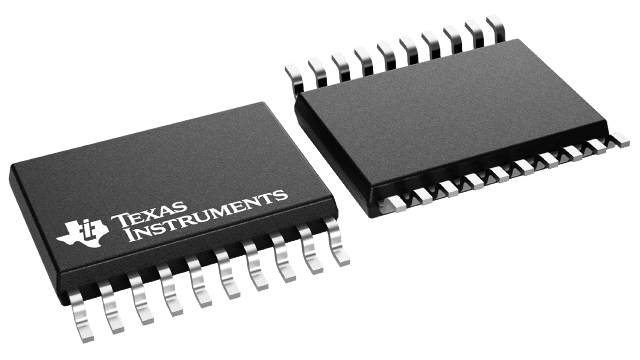

The Texas Instruments SN74LV8153PWR is an 8-bit serial-to-parallel interface shift register designed for efficient data conversion. This device accepts serial input data and outputs it in parallel format, simplifying data handling in various electronic systems.
Key electrical specifications include an LV-A technology family, Schmitt-Trigger inputs for improved noise immunity, and configurable output types supporting both open-collector and push-pull configurations. It operates with a supply voltage range of 3V to 5.5V and 3V to 13.2V, with a maximum clock frequency of 0.012 MHz. The device offers a maximum IOL of 40 mA and IOH of -24 mA, with a maximum supply current of 20000 µA.
Designed for standard speed operation with tpd > 50ns, the SN74LV8153PWR includes features such as over-voltage tolerant inputs and partial power-down (Ioff). It is rated for an operating temperature range of -40°C to 85°C, making it suitable for a wide array of environmental conditions.
The SN74LV8153PWR is available in a 20-TSSOP package, designed for surface mounting. Its serial-to-parallel function and configurable outputs make it a versatile component for applications requiring serial data acquisition and parallel output.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.89 | $0.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SN74LV8153PWR is a serial-to-parallel data converter.
The SN74LV8153PWR handles 8 bits per element.
The operating voltage range is 3V to 5.5V and 3V to 13.2V.
The operating temperature range is -40°C to 85°C.
The SN74LV8153PWR is available in a 20-TSSOP package.
The output types are Open Collector and Push-Pull.
