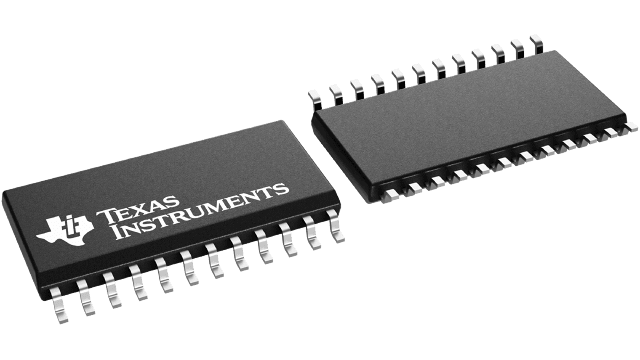

SN74LV8151DW The SN74LV8151DW from Texas Instruments is a 10-bit universal Schmitt-trigger buffer with 3-state outputs. It operates from 2V to 5.5V and is available in a 24-SOIC package.
Mfr Part #:

SN74LV8151DW

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The SN74LV8151DW from Texas Instruments is a 10-bit universal Schmitt-trigger buffer with 3-state outputs. It operates from 2V to 5.5V and is available in a 24-SOIC package.
✓ Total Stock: 150,667 pcs
$ Price Range: $0.65

SN74LV8151DW Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
150,667 pcs
On Request
150667 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SN74LV8151DW Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Latch-up Performance
Lead Style
Logic Type
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Output Type
Schmitt Trigger Input
Supplier Device Package
Voltage
View Similar Products (0)

SN74LV8151DW Description

Short technical summary and product information.

The SN74LV8151DW is a versatile 10-bit universal buffer/inverter IC manufactured by Texas Instruments. Designed for broad compatibility, it operates across a wide supply voltage range of 2V to 5.5V. This device features Schmitt-trigger inputs, which allow for slower input rise and fall times, enhancing signal integrity in noisy environments.



The SN74LV8151DW offers 3-state outputs and includes a logic control pin (T/C\) that enables configuration of the Y outputs as either noninverting (true logic) or inverting (complementary logic). This flexibility makes it suitable for various digital logic applications.



Key electrical characteristics include a maximum propagation delay of 15 ns at 5V, making it a high-speed component. It also supports partial power-down mode operation (Ioff) and mixed-mode voltage operation on all ports. The device is protected against ESD with ratings exceeding 2000V for the Human-Body Model, 200V for the Machine Model, and 1000V for the Charged-Device Model.



Packaged in a 24-lead SOIC format, the SN74LV8151DW is designed for surface mounting. Its operating temperature range is -40°C to 85°C, making it suitable for a variety of industrial and commercial applications.

SN74LV8151DW Quick Information

Product Type: Buffer/Inverter IC
Series: SN74LV8151
Canonical Name: SN74LV8151DW 10-Channel Universal Schmitt-Trigger Buffer
Subcategory: Universal Buffer/Inverter

SN74LV8151DW Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SN74LV8151DW Estimated Pricing

Qty Low High
1+ $0.65 $0.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

SN74LV8151DW Features

  • 10 channels for versatile logic operations.
  • Operates as a Buffer/Inverter logic type.
  • Wide supply voltage range of 2V to 5.5V.
  • Maximum operating current of 12mA.
  • Features 15 ns high-speed propagation delay.

SN74LV8151DW Applications

  • Used in general digital logic circuits.
  • Suitable for signal buffering applications.
  • Ideal for signal inversion requirements.
  • Applicable in mixed-voltage systems.
  • Integrated into various electronic designs.

SN74LV8151DW FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the SN74LV8151DW?

The operating voltage range for the SN74LV8151DW is 2V to 5.5V.

What is the operating temperature range of the SN74LV8151DW?

The operating temperature range for the SN74LV8151DW is -40°C to 85°C.

What are the available package types for the SN74LV8151DW?

The SN74LV8151DW is available in 24-SOIC, TVSOP (DGV), SOIC (DW), and TSSOP (PW) packages.

How many channels does the SN74LV8151DW have?

The SN74LV8151DW has 10 channels.

What is the logic type of the SN74LV8151DW?

The logic type of the SN74LV8151DW is Buffer/Inverter.

What is the maximum operating current for the SN74LV8151DW?

The maximum operating current for the SN74LV8151DW is 12mA.

What is the propagation delay of the SN74LV8151DW?

The propagation delay of the SN74LV8151DW is 15 ns.
