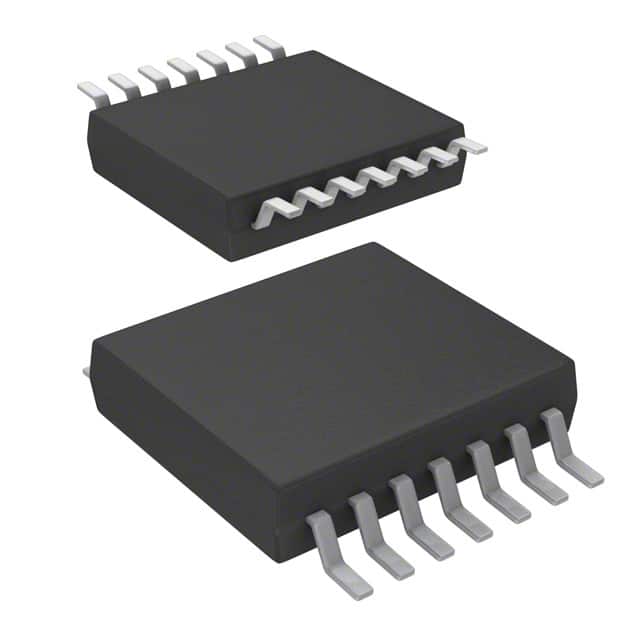

The SN74LV126ADGVR is a quadruple bus buffer gate designed by Texas Instruments for 2V to 5.5V VCC operation. This device features independent line drivers with 3-state outputs, where each output is disabled when its associated output-enable (OE) input is low.
Key electrical specifications include a maximum propagation delay of 6.5ns at 5V and an operating temperature range of -40°C to 125°C. The buffer gate supports mixed-mode voltage operation on all ports and offers latch-up performance exceeding 250mA per JESD 17.
This component is housed in a 14-TVSOP package and is designed for surface mounting. The 3-state outputs are crucial for bus-oriented applications, allowing multiple devices to share a common data line.
Applications for the SN74LV126A family include servers, network switches, electronic point-of-sales systems, TVs, and set-top boxes, making it a versatile component for various digital logic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SN74LV126ADGVR operates from 2V to 5.5V.
The maximum propagation delay is 6.5ns at 5V.
The operating temperature range is -40°C to 125°C (TA).
The SN74LV126ADGVR is available in a 14-TVSOP package.
Yes, the SN74LV126ADGVR features 3-state outputs.
