| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120,533 pcs
|
120533 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Logic Type | |
| Mounting Type | |
| Number of Bits per Element | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| SVHC Present | |
| Supplier Device Package | |
| Voltage |

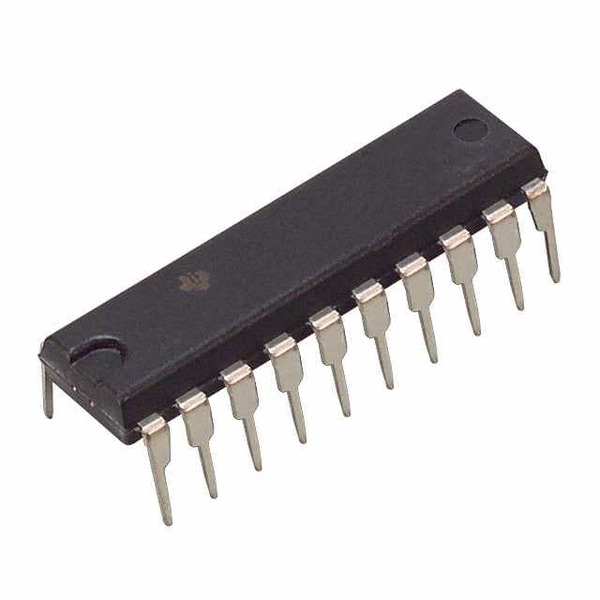

The SN74HCT541ANS from Texas Instruments is a buffer, non-inverting logic integrated circuit. It is designed for applications requiring reliable signal buffering and level shifting.
This device operates within a supply voltage range of 4.5V to 5.5V, making it suitable for various digital systems. The operating temperature range is specified from -40°C to 85°C (TA), ensuring performance in diverse environmental conditions. It features 8 bits per element across 1 element, providing efficient logic implementation.
The SN74HCT541ANS comes in a 20-SOIC surface mount package, facilitating integration into compact electronic designs. The output type is 3-State, offering flexibility in bus-oriented systems. The output current capability is 6mA for both high and low states.
This component is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.5V to 5.5V.
-40°C to 85°C.
20-SOIC (0.209", 5.30mm Width) for surface mount.
Buffer, Non-Inverting.
3-State.
8 bits per element.
6mA for both high and low outputs.
