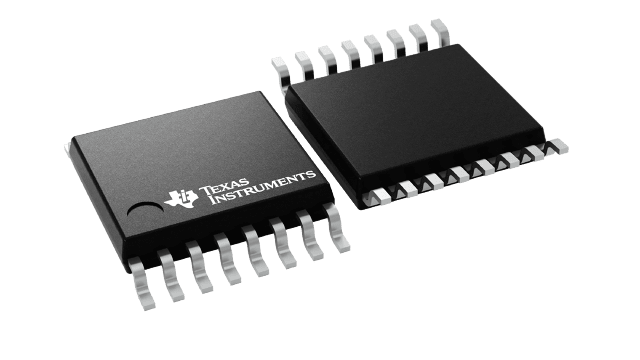

The SN74HC4020PWR from Texas Instruments is a 14-stage asynchronous binary ripple-carry counter. It advances on the negative-going edge of the clock pulse and can be reset asynchronously. This device operates within a wide voltage range of 2 V to 6 V, making it suitable for various applications.
Key electrical characteristics include a typical propagation delay of 12 ns and an output drive capability of ±4 mA at 5 V. The counter consumes low power, with a maximum ICC of 80 µA and a low input current of 1 µA max. It supports a count rate of up to 33 MHz.
This counter is available in a 16-SOIC package, designed for surface mounting. The operating temperature range is from -40°C to 85°C, ensuring reliable performance in diverse environmental conditions. The asynchronous reset function allows for independent resetting of the counter regardless of the clock input.
The SN74HC4020PWR is a versatile component for digital systems requiring counting or frequency division functions. Its robust design and wide operating parameters make it a reliable choice for embedded systems and control applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 V to 6 V.
-40°C to 85°C.
16-TSSOP surface mount package.
33 MHz.
Asynchronous counter with asynchronous reset.
Negative edge triggered.
Binary Counter.
