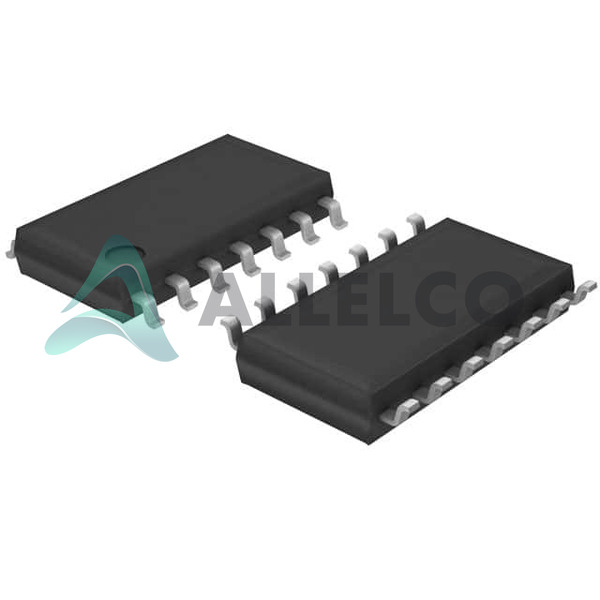

The SN74HC132AN from Texas Instruments is a high-speed CMOS logic NAND gate featuring Schmitt trigger inputs. This component is designed for a wide operating voltage range of 2V to 6V, making it versatile for various applications.
Key electrical characteristics include a maximum propagation delay of 19ns at 6V and 50pF, and a quiescent current of 5.2mA. The input logic levels range from 1.5V to 4.2V. The device contains four independent NAND gates, each with two inputs.
This integrated circuit is packaged in a 14-pin DIP (Dual In-line Package) with a 0.300" (7.62mm) body width, designed for through-hole mounting. The operating temperature range is -40°C to 85°C.
With its Schmitt trigger inputs, the SN74HC132AN offers improved noise immunity, making it suitable for applications where signal integrity is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2V to 6V.
14-DIP (0.300", 7.62mm) with through-hole mounting, supplier device package 14-PDIP.
-40°C to 85°C.
Four independent 2-input NAND gates.
Yes, it features Schmitt trigger inputs.
19ns maximum at 6V with 50pF load.
5.2mA maximum.
