| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | 0619+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| B0 | |
| Bandwidth | |
| Circuit | |
| Configuration | |
| Independent Circuits | |
| Industrial Grade | |
| Lead Style | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage Supply Source | |
| w |

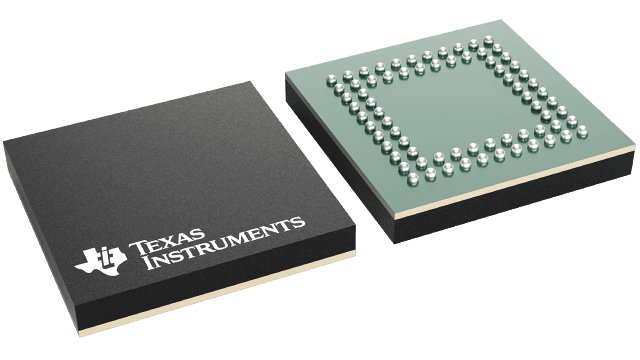

The SN74CBTU4411ZSTR from Texas Instruments is a high-bandwidth, 11-channel, 4:1 analog multiplexer and demultiplexer. Designed for applications requiring efficient signal routing, it features a minimum bandwidth of 400 MHz and low, flat ON-state resistance characteristics, with a maximum of 17000 mΩ.
This device supports a voltage range of 0V to 1.9V for input/output signals and operates within an ambient temperature range of 0°C to 85°C. It is supplied in a 72-NFBGA package suitable for surface mounting.
Key electrical specifications include a typical supply current of 700 µA, typical COFF of 2.5 pF, and typical CON of 4.6 pF. It also provides robust ESD protection with HBM typically rated at 2.5 kV and CDM at 0.75 kV. The device is suitable for DDR-II applications and supports SSTL_18 signaling levels.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.69 | $1.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SN74CBTU4411ZSTR has a minimum bandwidth of 400 MHz.
The operating temperature range for the SN74CBTU4411ZSTR is 0°C to 85°C.
The SN74CBTU4411ZSTR is supplied in a 72-NFBGA package.
The typical ON-state resistance is 10000 mΩ, with a maximum of 17000 mΩ.
The input/output voltage range is 0V to 1.9V.
The SN74CBTU4411ZSTR has 11 channels configured as 4:1 multiplexers.
