| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Latch-up Performance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Package / Case | |
| SVHC Present | |
| Storage Temperature |
The SN74CBT3257CRGYR from Texas Instruments is a high-speed, TTL-compatible FET multiplexer/demultiplexer. It features a 4-bit, 1-of-2 configuration with a single output-enable input.
Key electrical characteristics include a wide operating voltage range from 4V to 5.5V and low ON-state resistance of typically 3 Ohms. The device offers low input/output capacitance of 5.5 pF typical, minimizing signal distortion. It also provides undershoot protection up to -2V on the A and B ports and supports bidirectional data flow with near-zero propagation delay.
Designed for both digital and analog applications, this bus switch is suitable for interfaces like USB and bus isolation. It comes in a 16-pin VQFN package suitable for surface mounting.
The operating temperature range is -40°C to 85°C, and it is supplied in a standard package quantity of 3,000 units on a large tape and reel.
The operating voltage range is 4 V to 5.5 V.

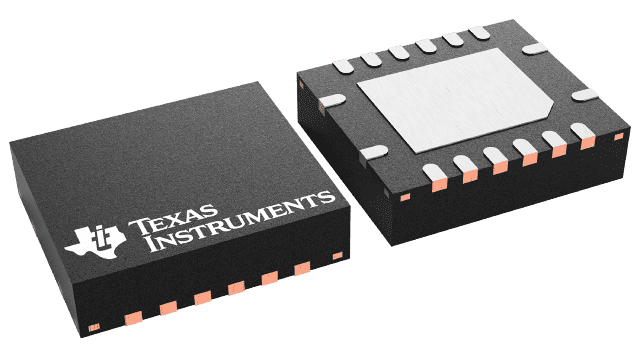

It uses a 16-pin VQFN surface mount package.
The operating temperature range is -40 °C to 85 °C.
The typical on-state resistance is 3 Ω.
It offers 2000 V Human-Body Model and 1000 V Charged-Device Model ESD protection.
The off-state input/output capacitance is typically 5.5 pF.
