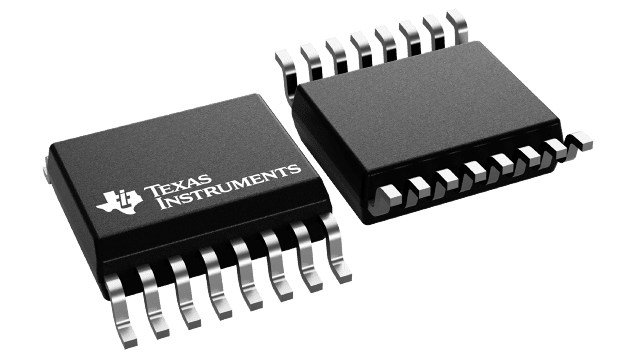

The SN74CBT3126DBQR from Texas Instruments is a quadruple FET bus switch designed for general-purpose applications. Each of the four independent line switches is disabled when its associated output-enable (OE) input is low. This device offers a bandwidth of 200 MHz and a typical on-resistance of 5000 mΩ, with a maximum on-resistance of 22000 mΩ.
The operating voltage range is from 0V to 5.5V, and it supports TTL-compatible input levels. The operating temperature range is -40°C to 85°C. The switch features a latch-up performance exceeding 250 mA per JESD 17. It is available in a DBQ package, suitable for surface mount applications.
To ensure a high-impedance state during power up or power down, the OE should be tied to GND through a pull-down resistor. The minimum value of this resistor is determined by the current-sourcing capability of the driver. This bus switch is ideal for applications requiring flexible signal routing and switching capabilities within the specified voltage and temperature ranges.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.33 | $0.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch configuration is 1:1 SPST (single-pole single-throw).
It has 4 channels.
The bandwidth is 200 MHz.
The typical on-resistance is 5000 mΩ (5 Ω).
The operating temperature range is -40°C to 85°C.
It comes in a DBQ surface-mount package.
Input high voltage minimum is 2 V and input low voltage maximum is 0.8 V.
