| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
139,077 pcs
|
139077 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,030 pcs
|
7030 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,618 pcs
|
2618 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Channels per Circuit | |
| Data Rate | |
| Data Rate (Max) | |
| Latch-up Performance | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Supplier Package | |
| Topology | |
| Translator Type | |
| Voltage |

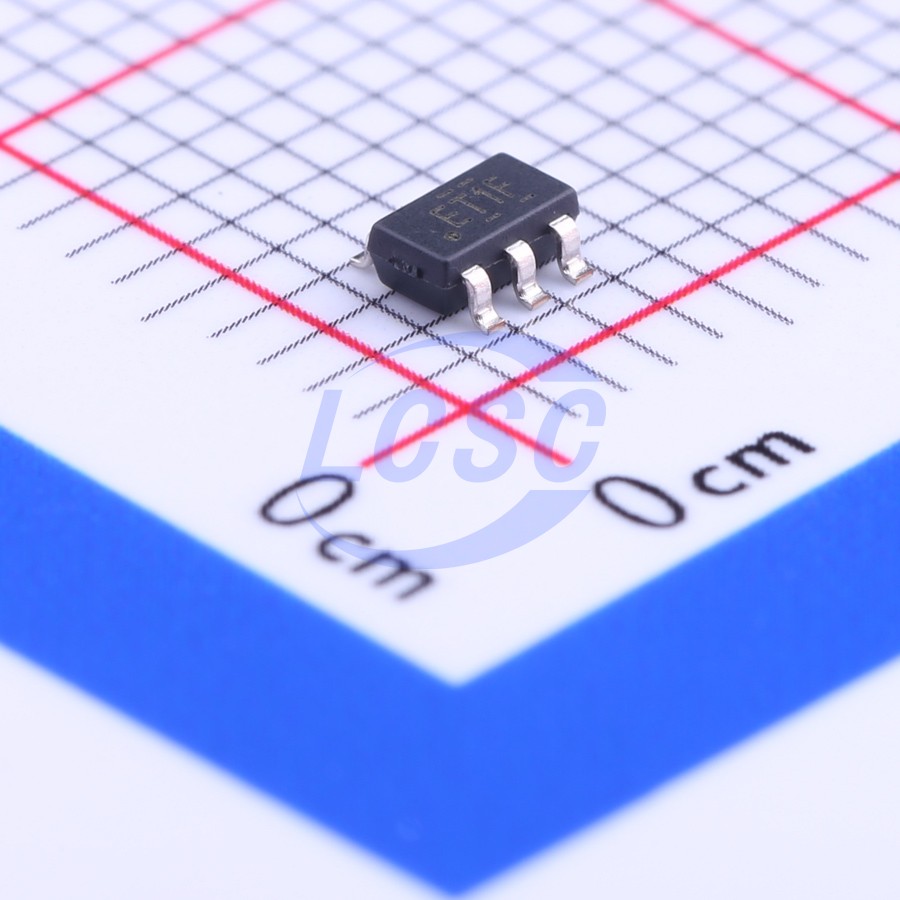

The SN74AVCH1T45DBVR is a single-bit, dual-supply bus transceiver manufactured by Texas Instruments. This device is designed for configurable level-shifting and voltage translation applications, operating with a supply voltage range from 1.2V to 3.6V.
Key electrical characteristics include a maximum data rate of 500Mbps and a propagation delay of 4.7ns. The transceiver features push-pull topology and tri-state, non-inverted outputs. It supports bidirectional data flow and has I/Os that are tolerant up to 4.6V, with bus-hold functionality on data inputs.
This component is available in a compact SOT-23-6 package, suitable for surface mount applications. It operates within a temperature range of -40°C to 85°C. The SN74AVCH1T45DBVR is part of the AVC technology family and offers features like partial power-down mode operation.
Applications for this transceiver include general-purpose interface translation, GPIO expansion, and systems requiring flexible voltage level shifting between different logic domains. Its design facilitates integration into space-constrained electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SN74AVCH1T45DBVR operates within a temperature range of -40°C to 85°C.
The SN74AVCH1T45DBVR is available in SOT-23-6, SC-70, and DSBGA packages.
The SN74AVCH1T45DBVR supports a maximum data rate of 500Mbps.
The input voltage range for the SN74AVCH1T45DBVR is 1.2V to 3.6V.
The output voltage range for the SN74AVCH1T45DBVR is 1.2V to 3.6V.
The SN74AVCH1T45DBVR is a Voltage Level translator.
The ESD protection for the Human-Body Model (A114-A) is 2000V.
