| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,357 pcs
|
1357 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
163 pcs
|
163 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Channels per Circuit | |
| Data Rate | |
| Latch-up Performance | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Propagation Delay | |
| Supplier Device Package | |
| Supplier Package | |
| Translator Type | |
| Voltage |
The SN74AVC4T234ZWAR from Texas Instruments is a 4-bit dual-supply unidirectional noninverting voltage translator designed for asynchronous communication between systems with different voltage levels. It supports a wide operating VCC range from 0.9 V to 3.6 V, with 3.6-V I/O tolerance for mixed-mode signal operation.
This device offers a maximum data rate of 380 Mbps, making it suitable for high-speed applications. Key electrical features include balanced propagation delays, low static power consumption (5 μA max), and ±3 mA output drive at 1.8 V. The outputs are disabled if either VCC goes to 0V, and it supports partial power-down mode operation via Ioff.

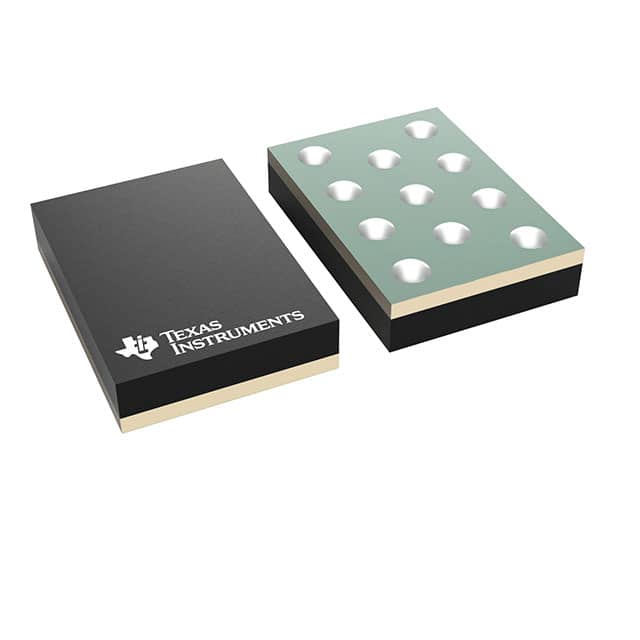

The SN74AVC4T234ZWAR is available in an 11-NFBGA package with a surface mount type. Its operating temperature range is -40°C to 85°C. The device also features ESD protection exceeding JESD 22 standards and latch-up performance exceeding 100 mA per JESD 78, Class II.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.64 | $0.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 0.9 V to 3.6 V.
It has 4 channels.
The maximum data rate is 380 Mbps.
It uses an 11-NFBGA surface mount package.
The operating temperature range is -40°C to 85°C.
It provides 2000 V ESD protection for the Human Body Model.
