| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,424 pcs
|
1424 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Channel Type | |
| Channels per Circuit | |
| Data Rate | |
| Features | |
| Latch-up Performance | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Propagation Delay | |
| Supplier Device Package | |
| Topology | |
| Translator Type | |
| Voltage |

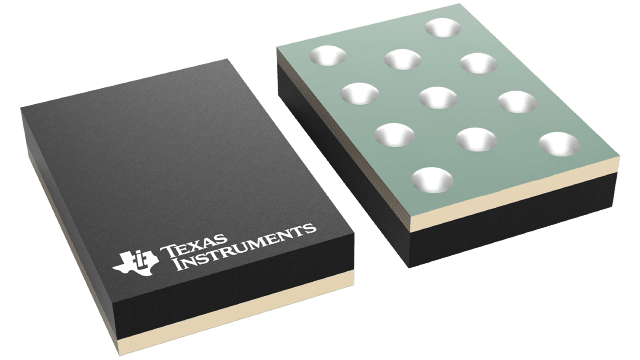

The SN74AVC4T234ZSUR from Texas Instruments is a 4-bit dual-supply bus transceiver designed for voltage translation applications. It supports a wide operating voltage range from 0.9V to 3.6V, making it suitable for mixed-mode signal environments. This device offers a maximum data rate of 380Mbps, enabling high-speed data transfer.
Key features include direction-controlled operation and partial power-down capability (Ioff). The transceiver is packaged in an 11-UCSP (2x1.4) format, designed for surface mounting. Its operating temperature range is -40°C to 85°C (TA). The SN74AVC4T234ZSUR also provides features like input hysteresis for improved noise immunity and ESD protection exceeding JESD 22 standards.
This component is ideal for applications requiring reliable voltage level shifting and bidirectional data flow. Its specifications make it a suitable choice for designs needing to interface between different voltage domains efficiently.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 85°C.
380 Mbps.
0.9V to 3.6V on both input and output.
11-UCSP (2x1.4) and 11-XFBGA, CSPBGA.
3.7ns maximum at 3.3V.
Yes, the device includes a partial power down (Ioff) feature.
AVC technology family.
