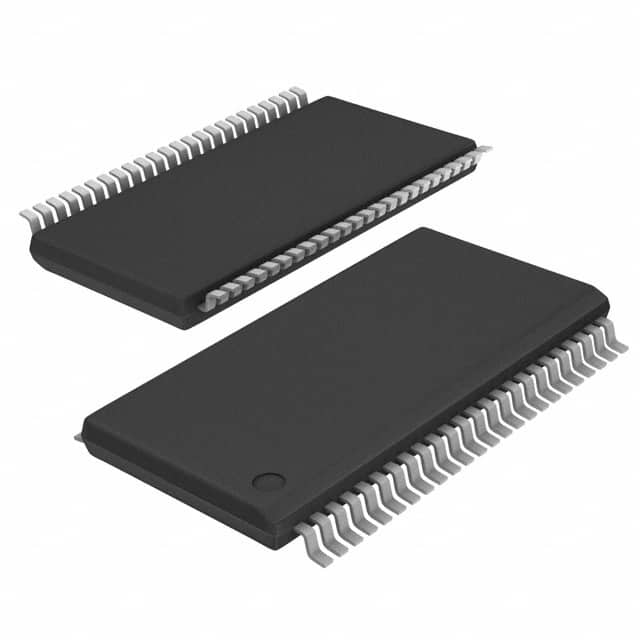

The SN74ALVTH162245VR is a 16-bit, dual-supply bus transceiver from Texas Instruments, part of the ALVT family. It is designed for 2.5-V and 3.3-V operation, with support for mixed-mode signal operation allowing 5-V input and output voltages with a VCC range of 2.3-V to 3.6-V.
This transceiver features 3-state outputs, high drive capability, and low static-power dissipation. The A-port outputs provide 12mA drive, while the B-port offers 32mA. It includes features like bus-hold, damping resistors, and partial power-down (Ioff) support. The Widebus design facilitates printed circuit board layout with distributed VCC and GND pins to minimize switching noise.
The SN74ALVTH162245VR is available in a 48-TVSOP package, suitable for surface mounting. Its operating temperature range is -40°C to 85°C. The flow-through architecture and bus hold on data inputs simplify design and prevent bus floating.
This component is ideal for applications requiring high-speed data transfer and level translation between different voltage domains. Its robust design and features like hot insertion support make it suitable for various electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SN74ALVTH162245VR operates from 2.3V to 3.6V.
The A-port outputs provide 12mA, and the B-port outputs provide 32mA.
The operating temperature range is -40°C to 85°C.
The SN74ALVTH162245VR is supplied in a 48-TVSOP package.
The typical output ground bounce voltage is less than 0.8V at VCC = 3.3V and TA = 25°C.
