| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
759 pcs
|
759 pcs | On Request | 1 | On Request | On Request | 05+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Latch-up Performance | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Operating Voltage | |
| Package / Case | |
| Propagation Delay | |
| SVHC Present | |
| Tape & Reel |

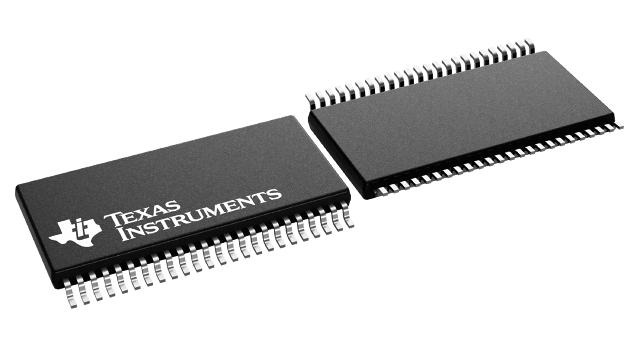

The SN74ALVC162334DGGR is a 16-bit universal bus driver featuring 3-state outputs, manufactured by Texas Instruments. It is part of the Widebus family and is designed for operation from 1.65V to 3.6V. This device is ideal for use in PC100 Register DIMM applications.
Key electrical characteristics include a maximum propagation delay of 3.8ns at 3.3V and an output drive capability of ±12mA at 3.3V. The output ports include equivalent 26-ohm series resistors, eliminating the need for external components to reduce overshoot and undershoot. The device operates in transparent mode when the latch-enable (LE) input is low, and data is latched on the low-to-high transition of the clock (CLK) input when LE is high.
Designed to comply with JEDEC 168-Pin and 200-Pin SDRAM Buffered DIMM specifications, the SN74ALVC162334DGGR offers robust performance. It boasts latch-up performance exceeding 250mA per JESD 17 and ESD protection exceeding JESD 22 standards, including 2000V for the Human-Body Model, 200V for the Machine Model, and 1000V for the Charged-Device Model.
This component is available in a TSSOP package, suitable for surface mount applications. Its operating temperature range is -40°C to 85°C.
The SN74ALVC162334DGGR operates from 1.65V to 3.6V.
The maximum propagation delay is 3.8ns at 3.3V.
The output drive current is ±12mA at 3.3V.
The SN74ALVC162334DGGR is available in a TSSOP package.
The operating temperature range is -40°C to 85°C.
