| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | 02+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage |
The SN74AUP2G32RSER from Texas Instruments is a dual-channel OR gate integrated circuit. It is designed for logic applications requiring OR functionality.
Key electrical specifications include a wide supply voltage range from 0.8V to 3.6V, a low quiescent current of 500 nA maximum, and an output current capability of 4mA. The gate features input logic levels between 0.7V to 0.9V for low and 1.6V to 2V for high. Propagation delay is specified at 6.2ns at 3.3V with a 30pF load capacitance.

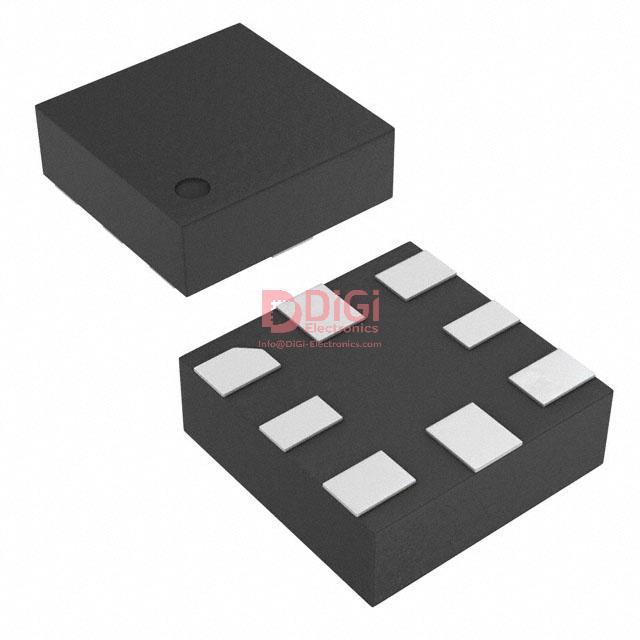

This component operates within a temperature range of -40°C to 85°C. It is housed in an 8-UQFN package, measuring 1.5x1.5mm, and is designed for surface mounting.
The SN74AUP2G32RSER is part of the 74AUP series, known for its low power consumption.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.35 | $10.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 0.8V to 3.6V.
The maximum propagation delay is 6.2ns at 3.3V with a 30pF load.
The operating temperature range is -40°C to 85°C.
It is supplied in an 8-UQFN package designed for surface mounting.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
