SN74AC374DWR The SN74AC374DWR is an 8-bit D-type flip flop from Texas Instruments with tri-state non-inverted outputs. It operates from 2V to 6V and features a maximum clock frequency of 155 MHz.
Mfr Part #:

SN74AC374DWR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The SN74AC374DWR is an 8-bit D-type flip flop from Texas Instruments with tri-state non-inverted outputs. It operates from 2V to 6V and features a maximum clock frequency of 155 MHz.
✓ Total Stock: 204,600 pcs
$ Price Range: $0.35

SN74AC374DWR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SN74AC374DWR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Current
Function
Input Capacitance
Max Propagation Delay @ V, Max CL
Mounting Type
Number of Bits per Element
Number of Elements
Operating Temperature
Operating Voltage
Output Type
Supplier Device Package
Supplier Package
Trigger Type
Type
Voltage
View Similar Products (0)

SN74AC374DWR Description

Short technical summary and product information.

The SN74AC374DWR is an 8-bit D-type flip flop from Texas Instruments featuring positive-edge triggering and tri-state non-inverted outputs. It is designed for general-purpose storage and register applications in digital systems.



The device operates over a supply voltage range of 2V to 6V, with a typical quiescent current of only 4 µA. It supports a maximum clock frequency of 155 MHz at 5V and exhibits a propagation delay of 8 ns (typical at 5V, 50 pF load). Input capacitance is 4.5 pF.

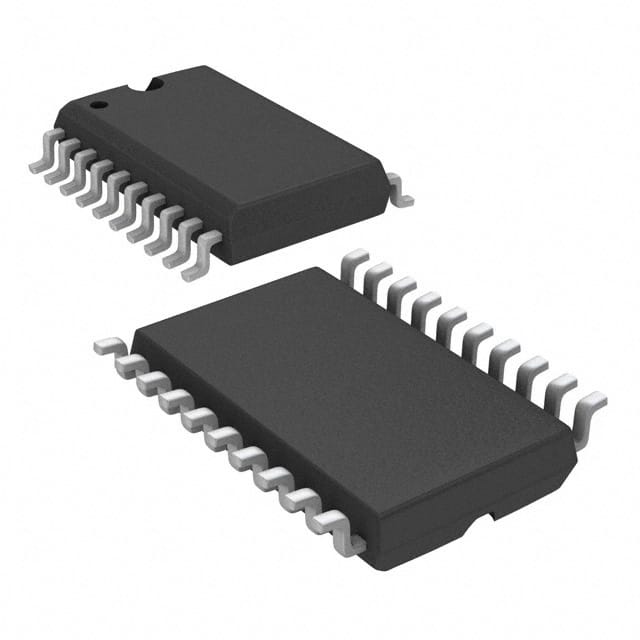

The SN74AC374DWR is housed in a 20-SOIC surface-mount package (0.295", 7.50mm width) and is specified for an operating temperature range of -40°C to 85°C. It is suitable for a wide range of logic and memory interface applications.

SN74AC374DWR Quick Information

Product Type: Flip Flop
Series: 74AC
Canonical Name: SN74AC374 Octal D-Type Edge-Triggered Flip-Flop with 3-State Outputs

SN74AC374DWR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SN74AC374DWR Estimated Pricing

Qty Low High
1+ $0.35 $0.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

SN74AC374DWR Features

  • 8-bit D-type flip flop with tri-state output.
  • Operates from 2V to 6V supply voltage.
  • Maximum clock frequency of 155 MHz.
  • Low quiescent current of 4 µA.
  • Surface-mount 20-SOIC package.

SN74AC374DWR Applications

  • Used in general-purpose digital data storage.
  • Suitable for register and buffer applications.
  • Ideal for microcontroller interface circuits.
  • Used in high-speed clocked logic systems.

SN74AC374DWR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the SN74AC374DWR?

The SN74AC374DWR operates from 2V to 6V.

What is the operating temperature range of the SN74AC374DWR?

The operating temperature range is -40°C to 85°C.

What package is the SN74AC374DWR available in?

The SN74AC374DWR is available in a 20-SOIC surface-mount package (0.295", 7.50mm width).

What is the maximum clock frequency of the SN74AC374DWR?

The maximum clock frequency is 155 MHz.

What is the output type of the SN74AC374DWR?

The output type is tri-state, non-inverted.
