| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Halogen Free | |
| Lead Style | |
| Logic Type | |
| Mounting Type | |
| Number of Bits per Element | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

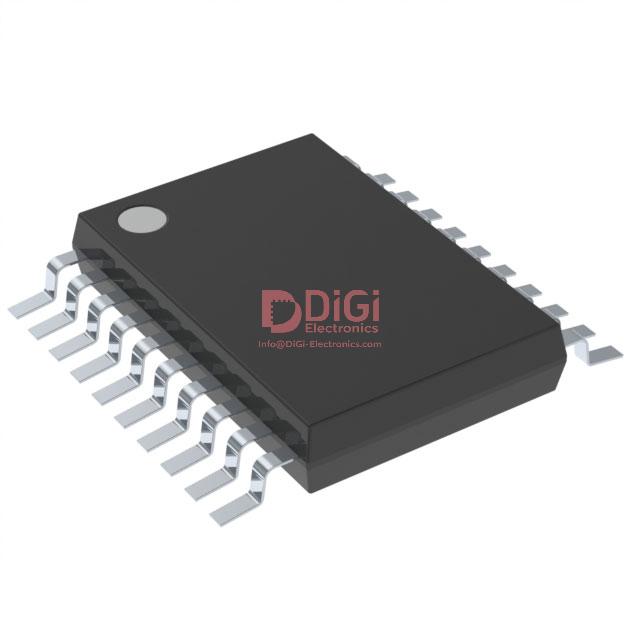

The SN74ABT541BPWR from Texas Instruments is an octal buffer designed for driving bus lines or buffering memory address registers. This device features non-inverting, 3-state outputs, allowing for efficient bus management.
Key electrical specifications include a supply voltage range of 4.5V to 5.5V and output drive capabilities of 32mA for IOH and 64mA for IOL. The operating temperature range is -40°C to 85°C (TA).
Packaged in a 20-TSSOP, this surface-mount component is suitable for various applications requiring reliable buffering and bus driving. The 3-state output capability is crucial for systems where multiple devices share a common bus.
This buffer is part of the 74ABT series, known for its advanced BiCMOS design that significantly reduces power dissipation. The high-impedance state during power up and power down ensures system stability.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.5V to 5.5V.
-40°C to 85°C.
20-TSSOP.
3-State.
8 bits.
