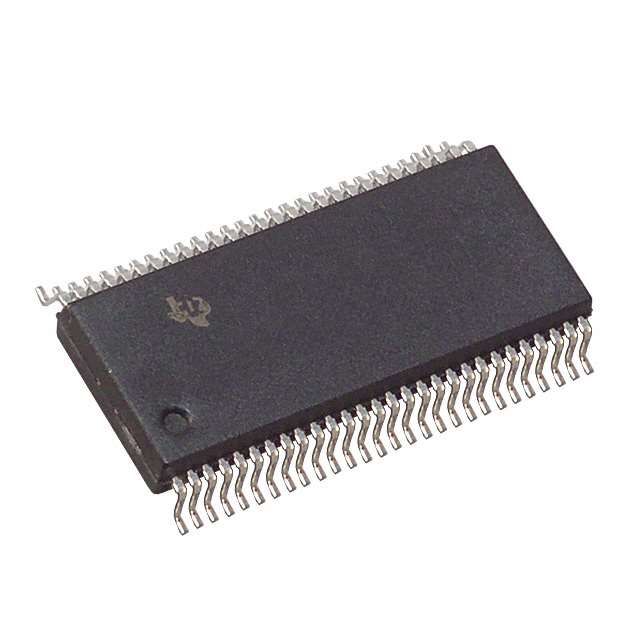

The SN74ABT16853DL from Texas Instruments is a dual 8-bit to 9-bit parity bus transceiver designed for efficient data bus communication. This device belongs to the Texas Instruments Widebus family and utilizes state-of-the-art EPIC-IIB BiCMOS design to significantly reduce power dissipation. It offers high-drive outputs with capabilities of -32mA IOH and 64mA IOL.
The transceiver features a parity-error flag with an integrated parity generator/checker. This allows for monitoring the parity of I/O ports and indicating any errors. The parity-error output can be controlled using latch-enable (LE) and clear (CLR) inputs. The device provides true data at the outputs and supports a voltage range of 4.5V to 5.5V.
Designed with a flow-through architecture, the SN74ABT16853DL optimizes PCB layout. It is housed in a 56-SSOP package, suitable for surface mounting. The operating temperature range is -40°C to 85°C (TA). This transceiver is ideal for applications requiring reliable data transfer with error checking capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.5V to 5.5V.
-40°C to 85°C.
56-SSOP (BSSOP, 0.295", 7.50mm Width).
Transceiver, Non-Inverting.
8 bits per element, 2 elements total.
Push-Pull.
Surface Mount.
