| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
355 pcs
|
355 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
82 pcs
|
82 pcs | On Request | 1 | On Request | On Request | 97 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| ESD Protection | |
| Latch-up Performance | |
| Logic Type | |
| Mounting Type | |
| Number of Bits per Element | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |

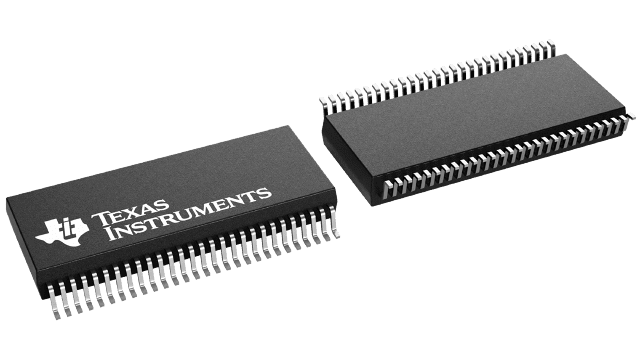

The SN74ABT162827ADL from Texas Instruments is a 20-bit non-inverting buffer, part of the Widebus family. It is composed of two independent 10-bit buffers, each controlled by separate output enable signals. The device operates within a voltage range of 4.5V to 5.5V and is housed in a 56-SSOP package.
Key features include 3-state outputs capable of sourcing or sinking up to 12mA, with integrated 25-ohm series resistors to minimize overshoot and undershoot. The buffer supports hot-insertion with Ioff and power-up 3-state capabilities, ensuring safe operation during power transitions. Its flow-through architecture is designed to optimize PCB layout.
This buffer offers robust performance with latch-up exceeding 500mA per JEDEC standard JESD-17 and ESD protection exceeding 2000V for the human-body model. The operating temperature range is -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.77 | $2.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.5V to 5.5V.
-40°C to 85°C.
56-SSOP (BSSOP) with 0.295" width, 7.50mm.
20 bits total, organized as two 10-bit elements.
3-state.
12mA per output (both high and low).
2kV Human-Body Model, 200V Machine Model.
