| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Frequency | |
| Data Rate | |
| Duplex | |
| Input Signal | |
| Lead Spacing | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Output Signal | |
| Protocol | |
| Receiver Hysteresis | |
| Supplier Device Package | |
| Type | |
| Voltage |

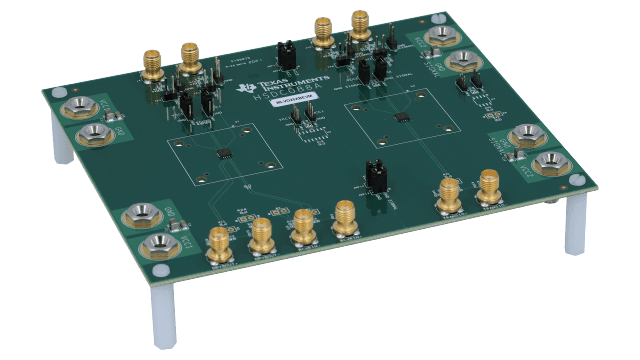

The SN65MLVD206BDR is a multipoint-LVDS (M-LVDS) line driver and receiver from Texas Instruments. This transceiver operates at signaling rates up to 200 Mbps and clock frequencies up to 100 MHz, making it suitable for high-speed data communication.
It features a Type-2 receiver with an offset threshold for detecting open-circuit and idle-bus conditions. The device supports a wide common-mode voltage range of -1V to 3.4V, allowing for data transfer with significant ground noise. The SN65MLVD206BDR is designed for surface mount installation in an 8-SOIC package.
Key electrical characteristics include a 3V to 3.6V operating voltage and ±8kV HBM and IEC ESD protection. The controlled driver output voltage transition times ensure improved signal quality. Bus pins are high impedance when disabled or when VCC is less than or equal to 1.5V.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.42 | $1.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SN65MLVD206BDR supports signaling rates up to 200 Mbps.
The SN65MLVD206BDR supports M-LVDS and LVTTL protocols.
The operating temperature range is -40°C to 85°C.
The SN65MLVD206BDR is available in an 8-SOIC package.
The operating voltage is between 3V and 3.6V.
Yes, it features ±8kV HBM and ±8kV IEC 61000-4-2 contact discharge protection.
