| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,505 pcs
|
2505 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
101 pcs
|
101 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Function | |
| Input Type | |
| Mounting Type | |
| Number of Inputs | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Power Consumption | |
| Supplier Device Package | |
| Transfer Rate | |
| Voltage |

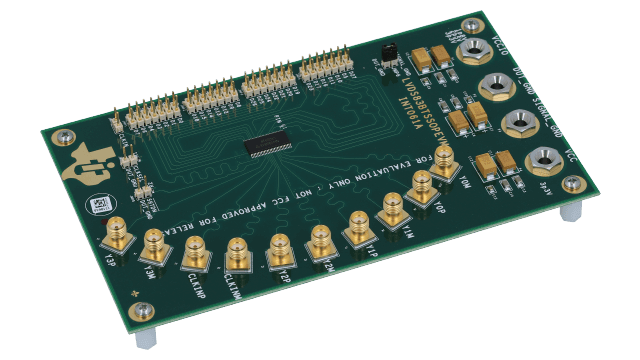

The SN65LVDS93BIDGGRQ1 from Texas Instruments is an automotive-qualified LVDS SerDes transmitter. It is part of the Flat Panel Display Link series, designed for direct interface with LCD display panels.
This device supports a pixel clock frequency range of 10 MHz to 85 MHz, enabling data rates up to 2.38 Gbps. It features 28 data channels plus clock input in low-voltage TTL and outputs 4 data channels plus clock in low-voltage differential LVDS. The input compatibility is LVCMOS, and the output is LVDS, suitable for color depths up to 24 bits per pixel.
Designed for in-vehicle infotainment (IVI) systems, the SN65LVDS93BIDGGRQ1 can drive up to 10 meters of STP cable, offering EMI reduction and supporting spread spectrum clocking. It operates from a single 3.3V supply and has a typical power consumption of 170 mW at 75 MHz, consuming less than 1 mW when disabled. The operating temperature range is -40°C to 85°C.
The component is available in a 56-TSSOP package with surface mount type. It is AEC-Q100 qualified for automotive applications, with HBM ESD classification of 3 and CDM ESD classification of C6.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.95 | $4.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
It features LVCMOS input compatibility and LVDS output.
The maximum data rate supported is 2.38 Gbps.
The pixel clock frequency range is 10 MHz to 85 MHz.
It is available in a 56-TSSOP package.
