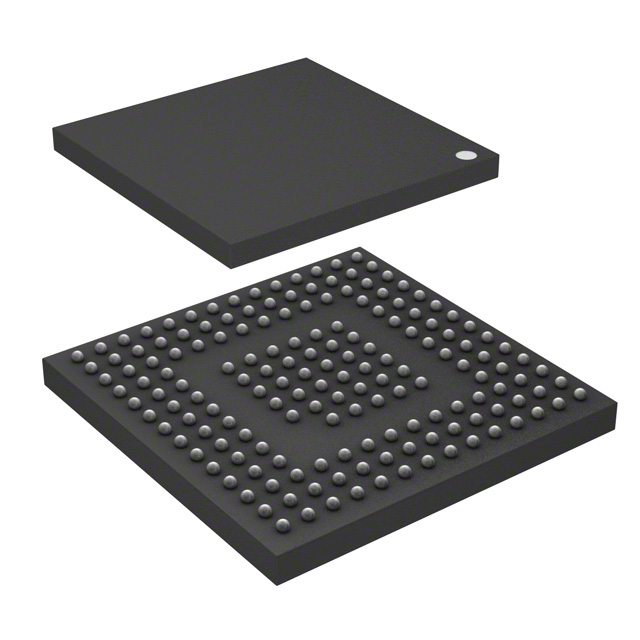

The Texas Instruments SN65LVCP114ZJA is a high-speed quad multiplexer and linear redriver designed for demanding interface applications. It supports multi-rate operation up to 14.2 Gbps and incorporates linear receiver equalization to enhance system-level signal margin. The device features AC-coupling input compatibility and CML output.
Key electrical characteristics include a maximum data rate of 14.2 Gbps and a typical propagation delay of 200 ps. Signal conditioning capabilities include input equalization and output pre-emphasis. The device operates over a temperature range of -40°C to 85°C and supports a voltage range of 2.375V to 3.465V. Power consumption is low, typically 150 mW per channel.
Packaged in a 167-NFBGA (12x12 mm) surface-mount package, the SN65LVCP114ZJA offers excellent impedance matching to 100-ohm PCB transmission lines. Its small package size contributes to board space savings. The device also features I2C control and a diagnostic mode.
This redriver is suitable for applications requiring high-speed data transmission and signal integrity enhancement, such as Fibre Channel and general-purpose interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.79 | $21.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum data rate is 14.2 Gbps.
It features AC-coupling input compatibility.
The operating temperature range is -40°C to 85°C.
It is supplied in a 167-NFBGA (12x12 mm) package.
It includes input equalization and output pre-emphasis.
The typical power consumption is 150 mW per channel.
It supports 2.5-V or 3.3-V single power supply.
